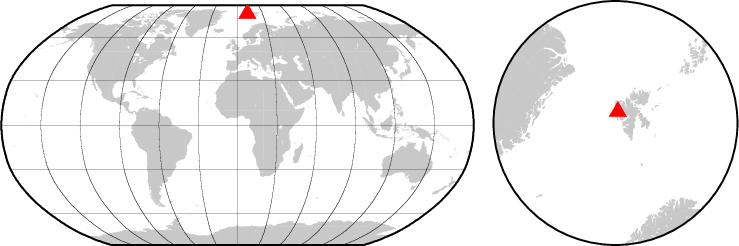

Station details:
================

Code: KBS
Latitude:  78.92561
Longitude:   11.94169
Elevation:    74.0
Depth:
Name: Kingsbay
Region: Svalbard,Norway
Status:

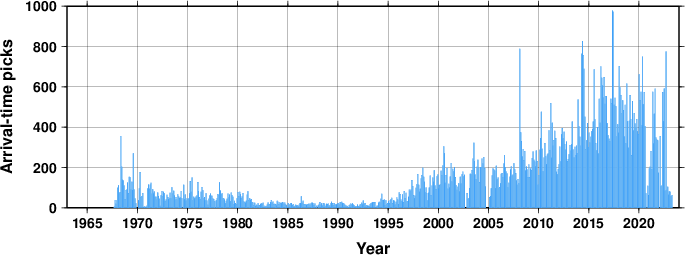

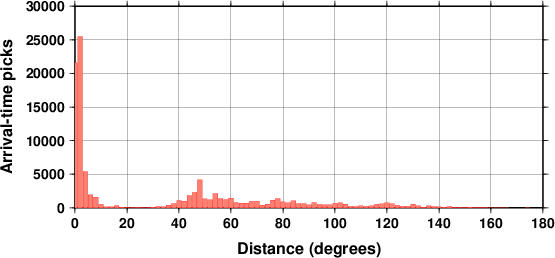

Arrival picks statistics

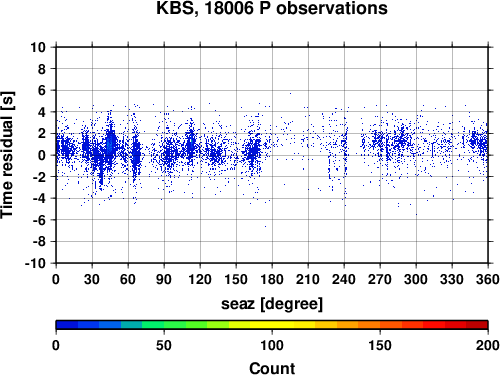

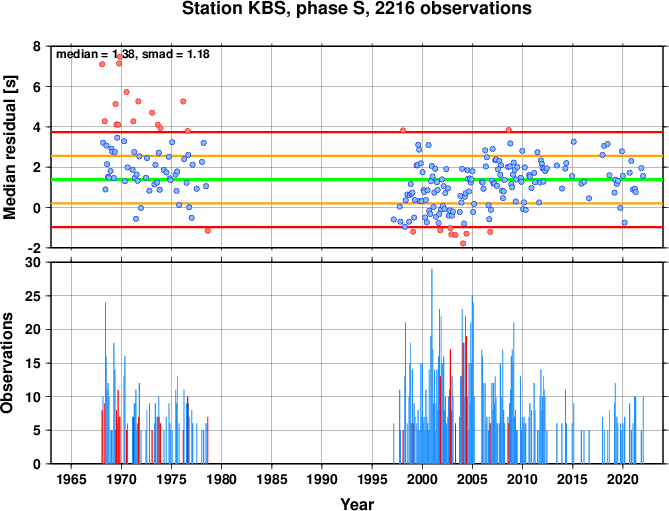

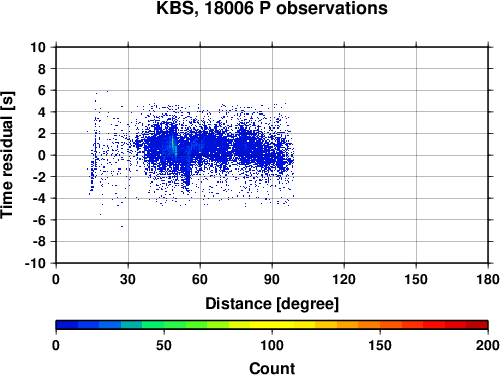

Travel Time Analysis

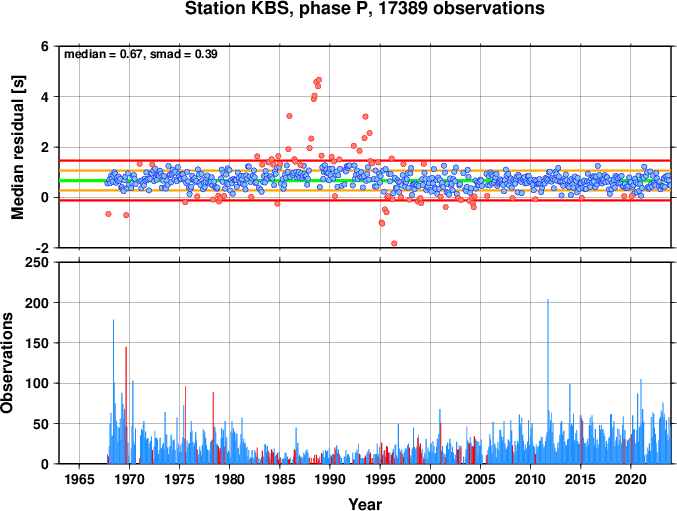

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.
Travel time residuals

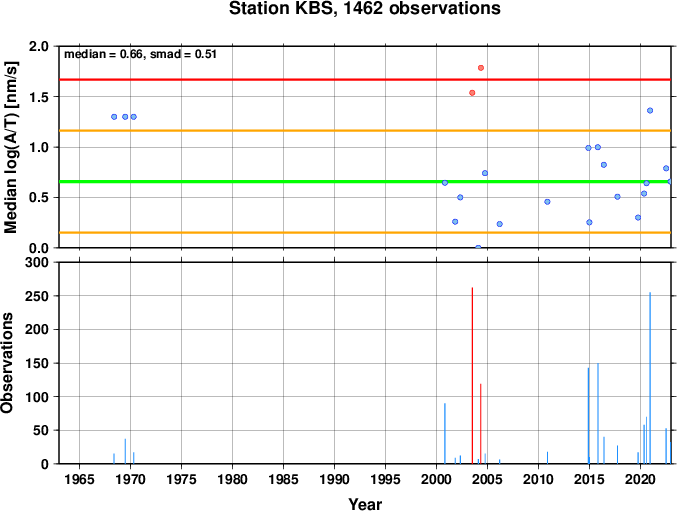

Amplitude analysis
 On the top graph every dot represents the median value for that month of data.
The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line (if present) shows twice the standard deviation (2 * smad).
The bottom graph shows the number of observations for each month. Any red columns show those observations whose monthly median value is greater than twice the standard deviation (2 * smad) from the overall (running) median (shown in the top graph by red dots).

Red dots indicate a possible calibration error.


Station comments:
=================

Coordinates corrected Sept 1998
XC1R4-DIZ-WWV
DWSS 19861018-19870913
GFON opened 199411

Data at the ISC for 59 years between 1967 and 2025.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

KBS    Kingsbay                                                      78.92560   11.92500      74.0         25-08-1999 25-08-1999
       Svalbard
