Station details:
================

Code: KEKH
Latitude:  21.98289
Longitude: -159.71100
Elevation:    54.0
Depth:
Name: Kekaha
Region: Hawaii,U.S.A.
Status:

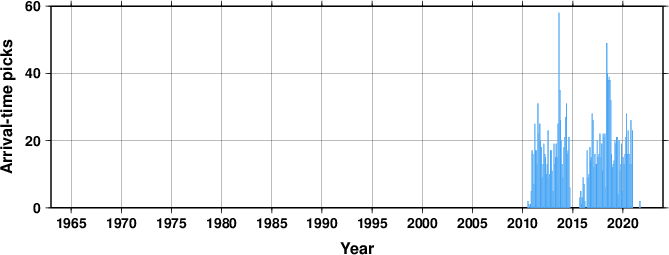

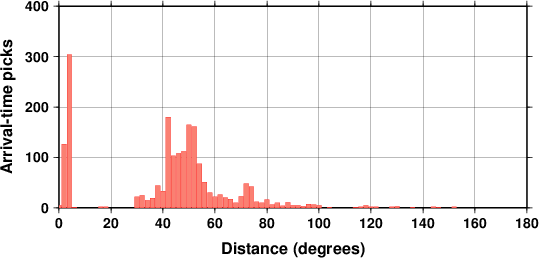

Arrival picks statistics
Travel Time Analysis

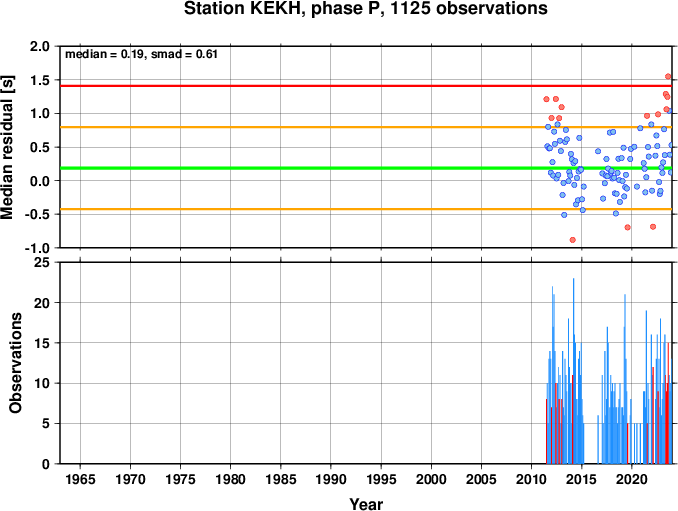

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.
Travel time residuals


Station comments:
=================

6-component station, STS-2 & Episensor

Data at the ISC for 12 years between 2010 and 2021.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

KEKH   Kekaha                                                        21.98289 -159.71100      54.0         30-10-2007 05-10-2010
       North America

KEKH   Kekaha                                                        21.98289 -159.71100      54.0         05-10-2010 05-10-2010
       Kauai,Hawaii
