Station details:
================

Code: KIW
Latitude: -40.86086
Longitude:  174.90976
Elevation:   381.0
Depth:
Name: Kapiti Island
Region: North Island,New Zealand
Status:

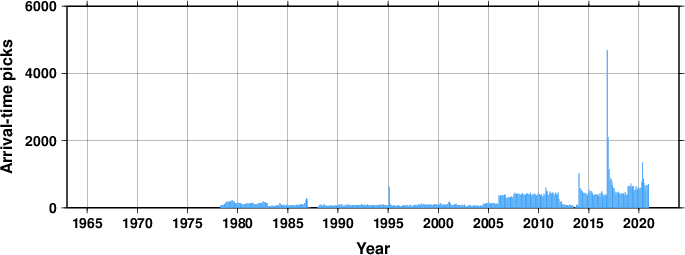

Arrival picks statistics
Travel Time Analysis

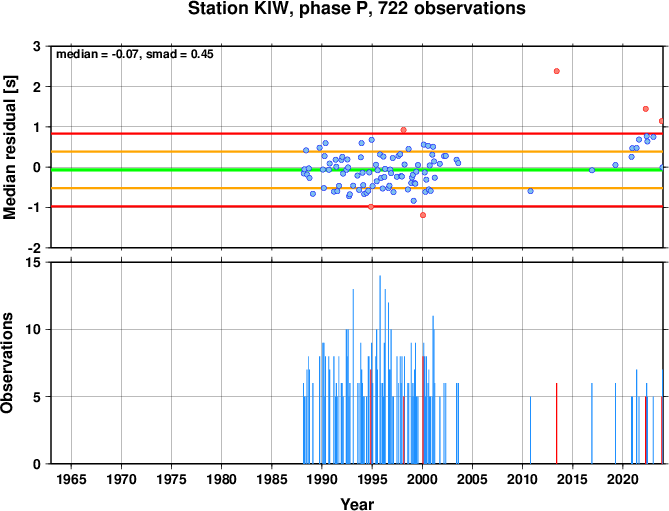

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

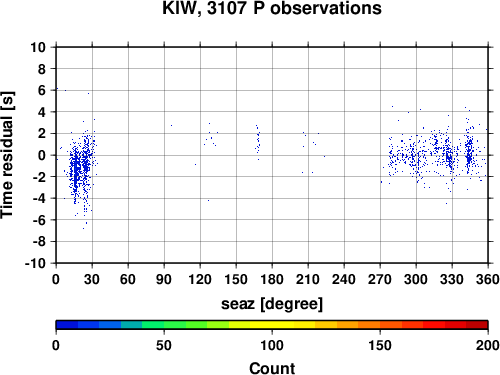

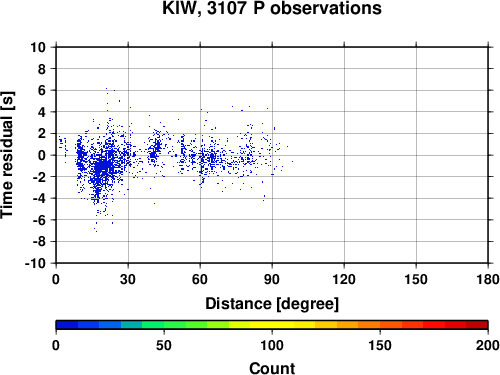

Travel time residuals


Station comments:
=================

Checked against station bulletin
opened 19780410
Coordinates coorrected on 01-07-2004, NZGD49 datum

Data at the ISC for 43 years between 1978 and 2020.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

KIW    Kapiti Island                                                -40.86390  174.91200     320.0         25-08-1999 01-07-2004
       North Island,New Zealand
