Station details:
================

Code: KNTN
Latitude:  -2.77439
Longitude: -171.71900
Elevation:     0.3
Depth:
Name: Kanton
Region: Phoenix Islands,Kiribati
Status:

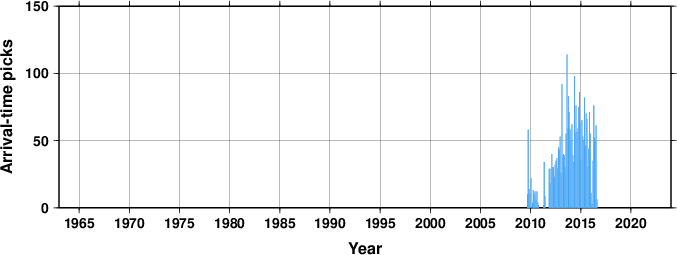

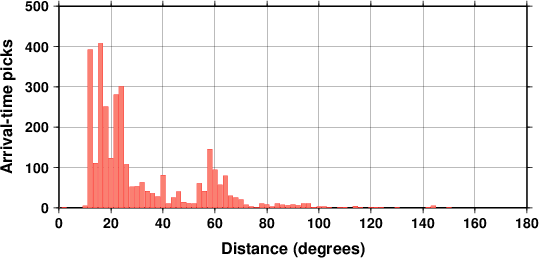

Arrival picks statistics
Travel Time Analysis

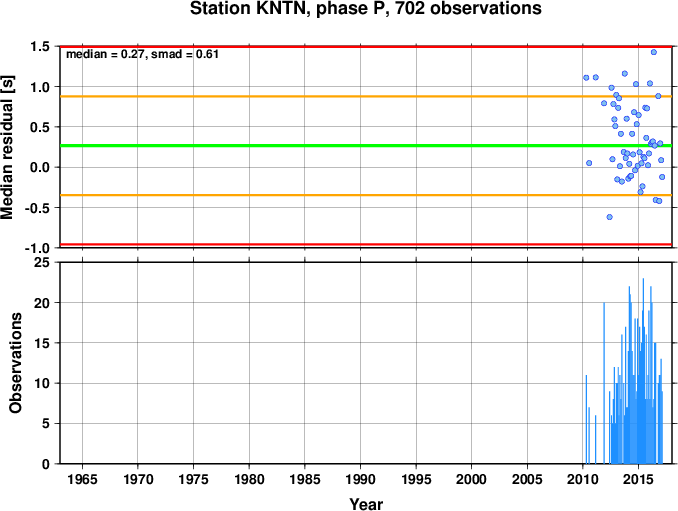

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

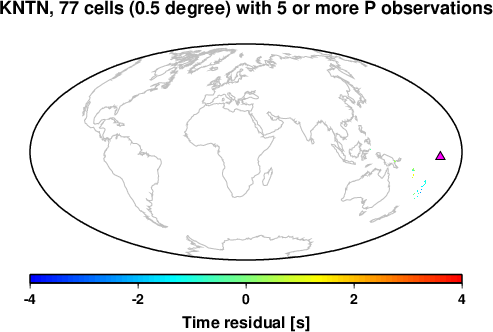

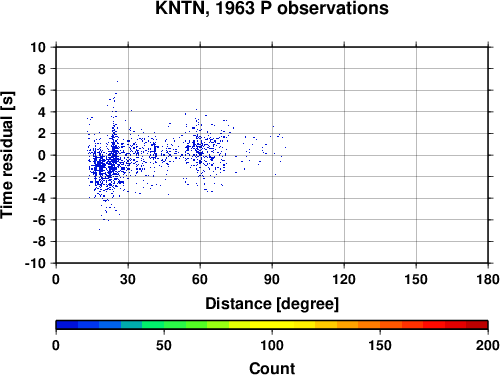

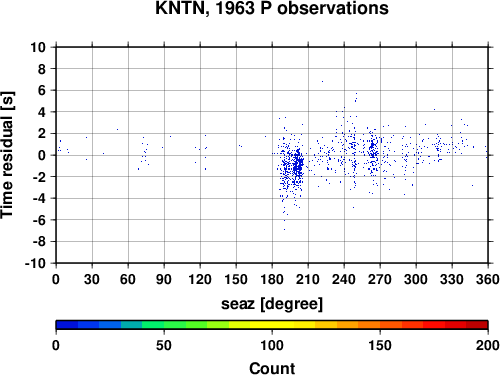

Travel time residuals


Station comments:
=================

proposed IRIS-USGS and PSDN station

Data at the ISC for 8 years between 2009 and 2016.
