Station details:
================

Code: KS15
Latitude:  37.44211
Longitude:  127.88439
Elevation:   112.0
Depth:
Name: Wonju Array Sites 15 and 31
Region: Republic of Korea
Status:

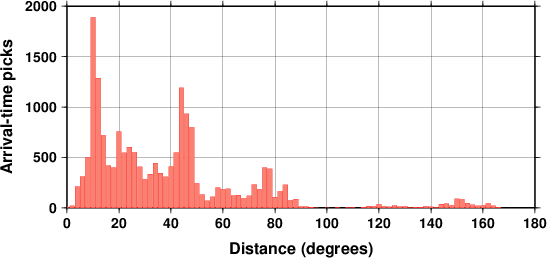

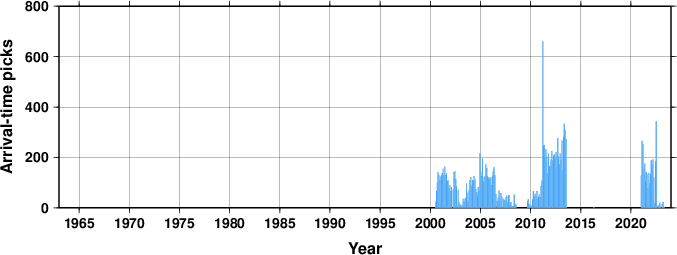

Arrival picks statistics
Travel Time Analysis

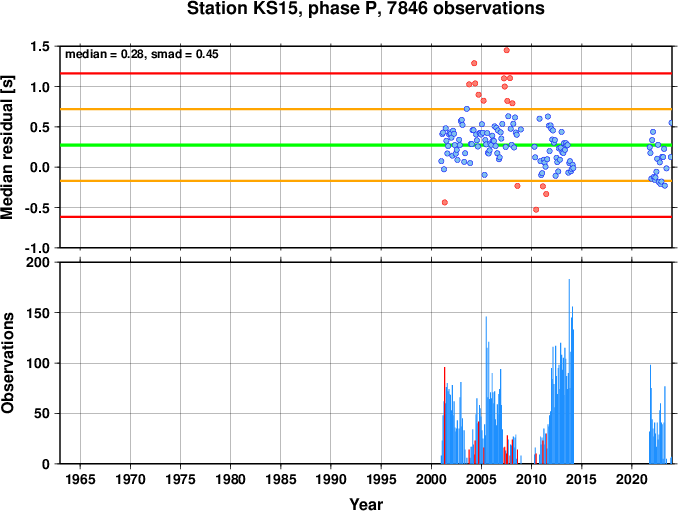

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

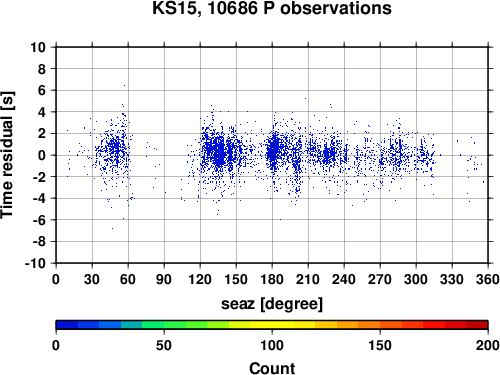

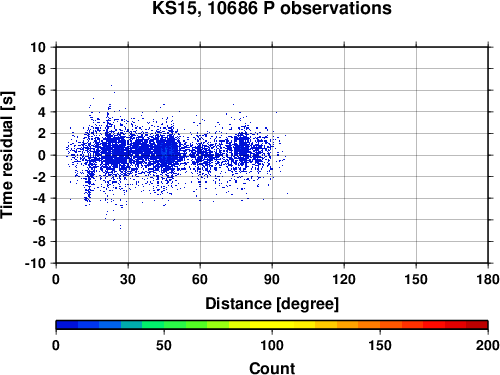

Travel time residuals


Station comments:
=================

opened 19720817
BB site 31 opened 19730423
BB elevation 109m

Data at the ISC for 18 years between 2000 and 2023.
