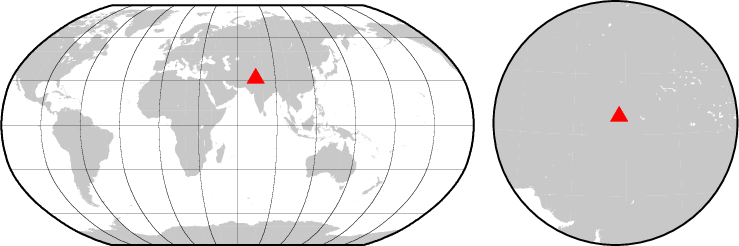

Station details:
================

Code: LAH
Latitude:  31.55000
Longitude:   74.33330
Elevation:   210.0
Depth:
Name: Lahore
Region: Pakistan
Status:

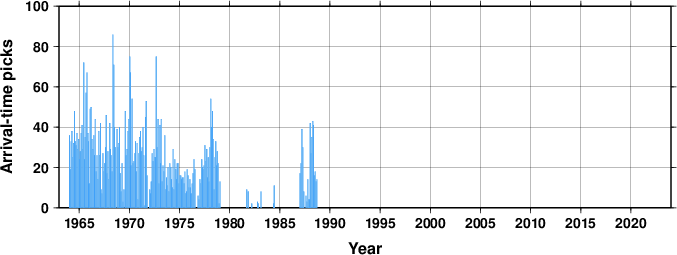

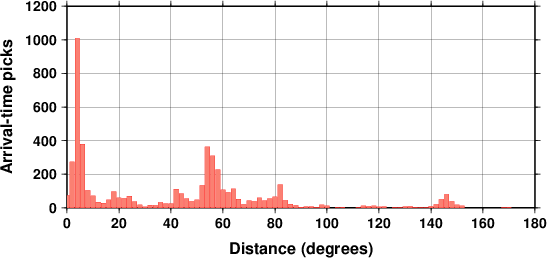

Arrival picks statistics
Travel Time Analysis

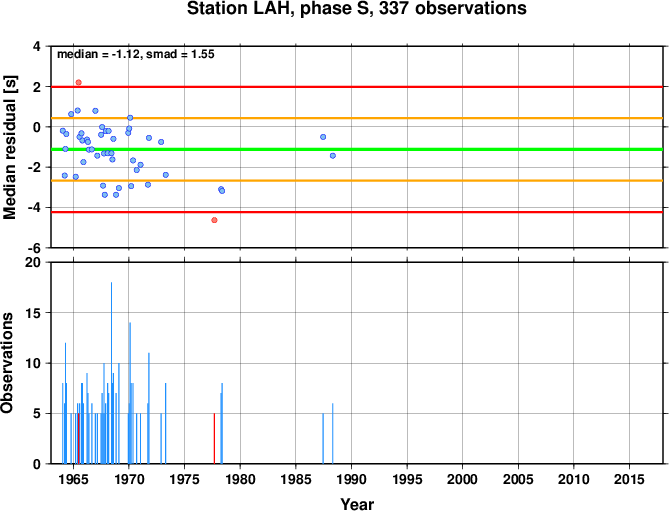

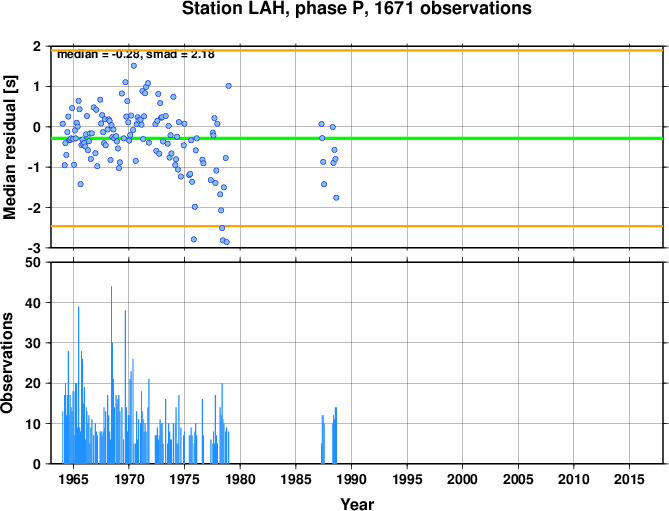

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

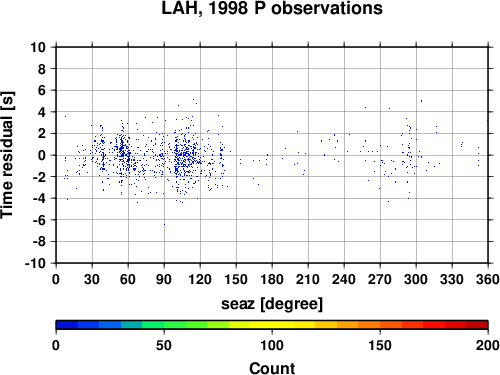

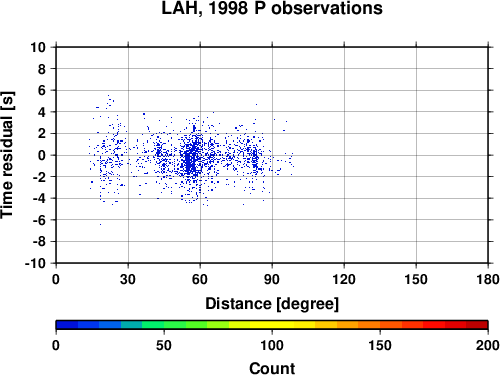

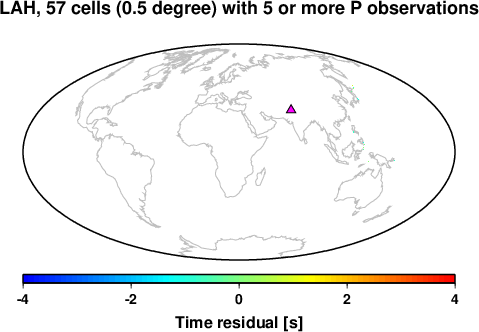

Travel time residuals


Station comments:
=================

Checked against station bulletin
PC2-BBC(U)-ATA(U)
opened 1952
WWSS 19620904-19681231

Data at the ISC for 32 years between 1955 and 1990.
