Station details:
================

Code: LAT
Latitude:  -6.66511
Longitude:  147.00200
Elevation:    72.0
Depth:
Name: Lae
Region: Papua New Guinea
Status:

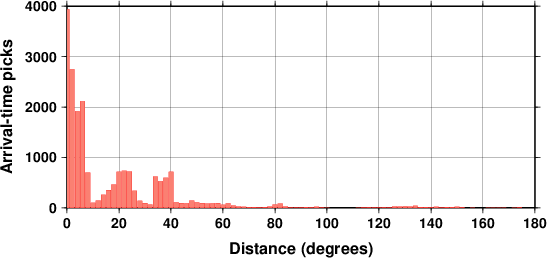

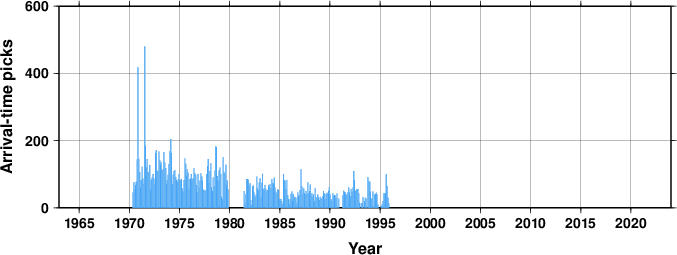

Arrival picks statistics
Travel Time Analysis

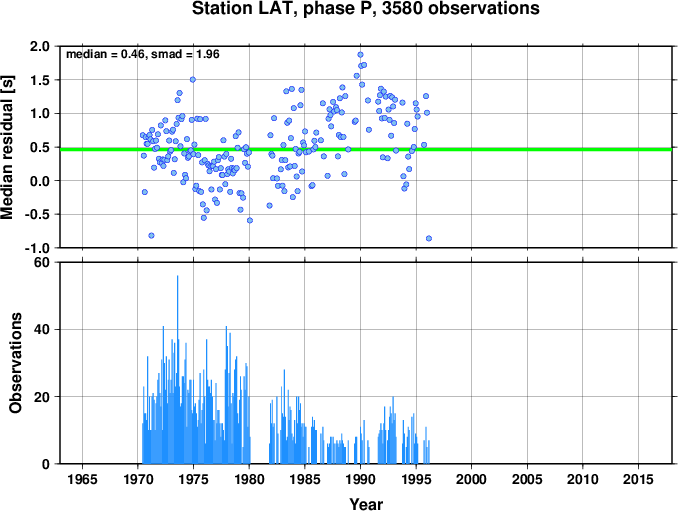

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

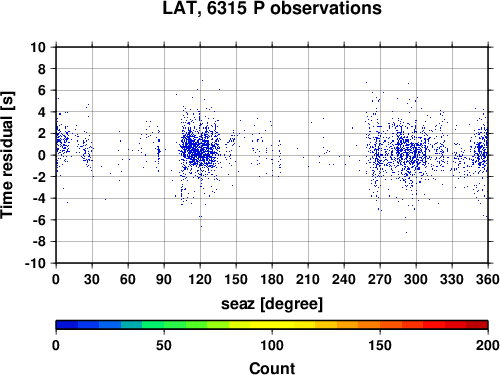

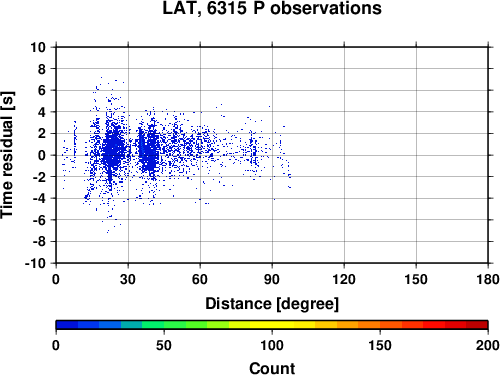

Travel time residuals


Station comments:
=================

Replaces *LAE*. Correction to coordinates Sep 1992
XC1-VNG
opened 19700519

Data at the ISC for 26 years between 1970 and 1995.
