Station details:
================

Code: LATQ
Latitude:  47.38356
Longitude:  -72.78194
Elevation:   163.0
Depth:
Name: La Tuque
Region: Quebec,Canada
Status:

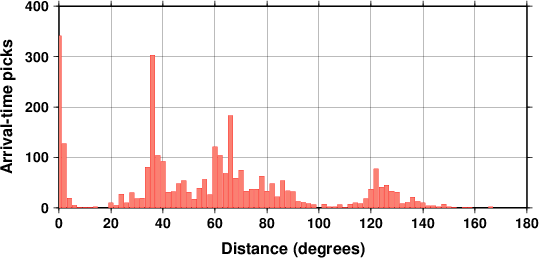

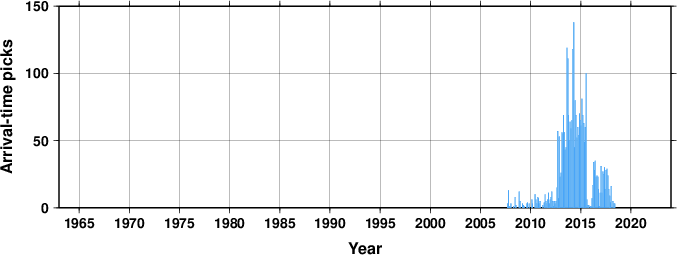

Arrival picks statistics
Travel Time Analysis

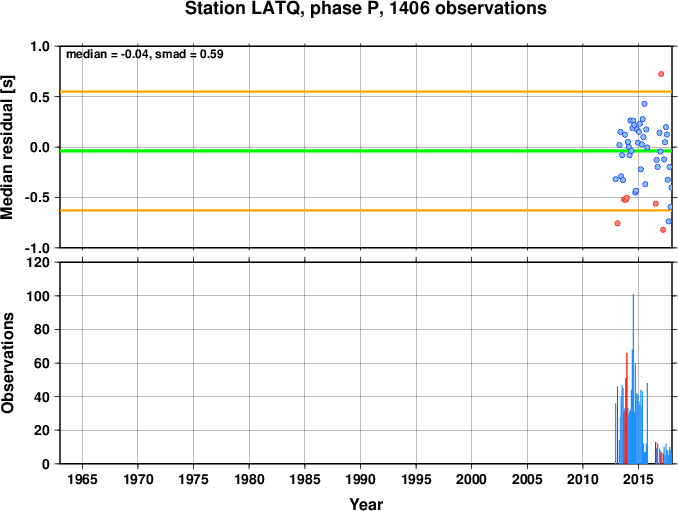

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

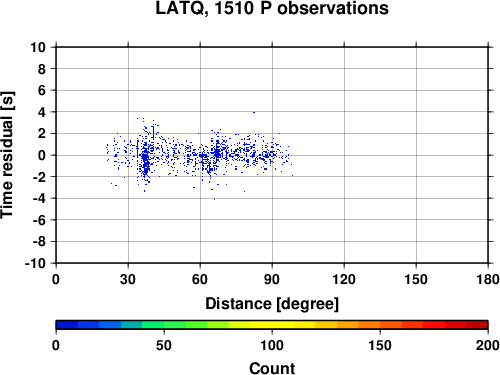

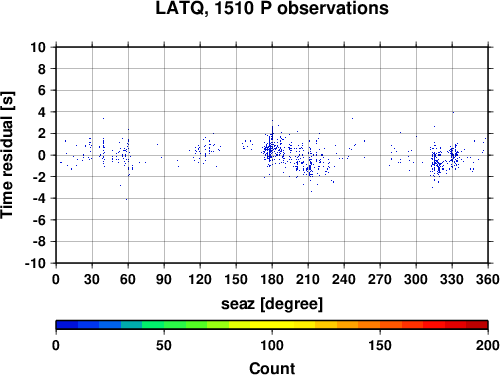

Travel time residuals


Station comments:
=================

Network - POLARIS

Data at the ISC for 12 years between 2007 and 2018.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

LATQ   La Tuque                                                      47.38355  -72.78193     163.0         29-08-2007 14-11-2007
       Quebec

LATQ   La Tuque                                                      47.38355  -72.78193     163.0         14-11-2007 14-11-2007
       Quebec
