Station details:
================

Code: LBFI
Latitude:  -8.48000
Longitude:  119.89000
Elevation:   123.0
Depth:
Name: Labuhan Bajo, Sumatra
Region: Flores,Indonesia
Status:

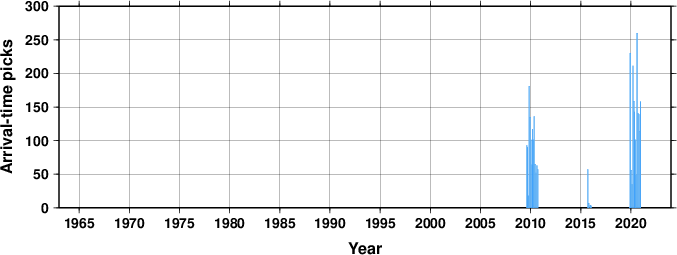

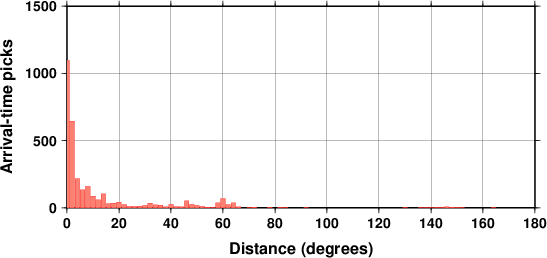

Arrival picks statistics
Travel Time Analysis

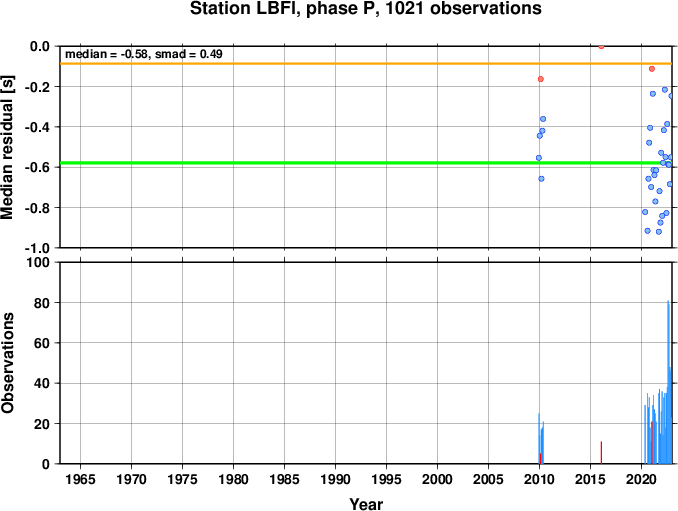

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================


Data at the ISC for 6 years between 2009 and 2020.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

LBFI   Labuhan Bajo, Sumatra                                         -8.48000  119.89000     123.0         01-10-2009 05-10-2010
       Flores
