Station details:
================

Code: LCHF
Latitude:  46.66933
Longitude:   -0.74167
Elevation:   166.0
Depth:
Name: La Chataigneraie
Region: Poitou-Charentes,France
Status:

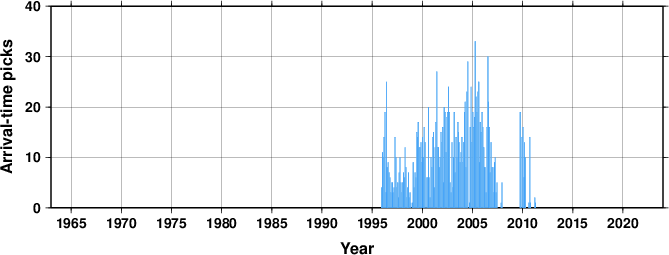

Arrival picks statistics
Travel Time Analysis

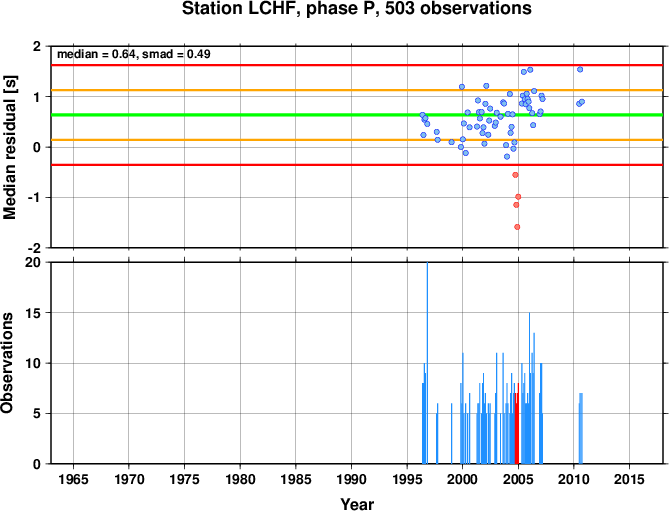

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

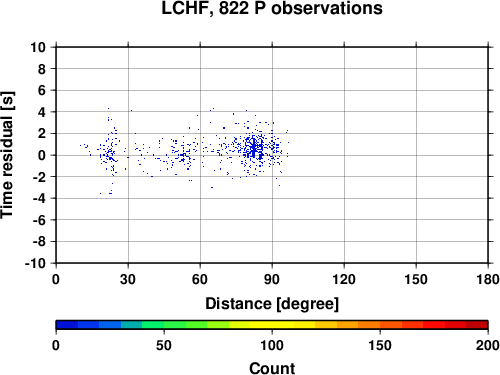

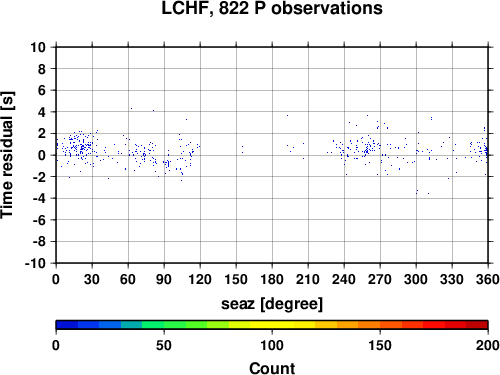

Travel time residuals


Station comments:
=================

ReNaSS opened 1995
Updated lon

Data at the ISC for 16 years between 1995 and 2011.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

LCHF   La Chataigneraie                                              46.66920   -0.74817     166.0         25-08-1999 25-08-1999
       Poitou-Charentes

LCHF   La Chataigneraie                                              46.66933   -0.74817     166.0         25-08-1999 20-02-2006
       Poitou-Charentes,France
