Station details:
================

Code: LEM
Latitude:  -6.82661
Longitude:  107.61750
Elevation:  1293.0
Depth:
Name: Lembang
Region: Jawa,Indonesia
Status:

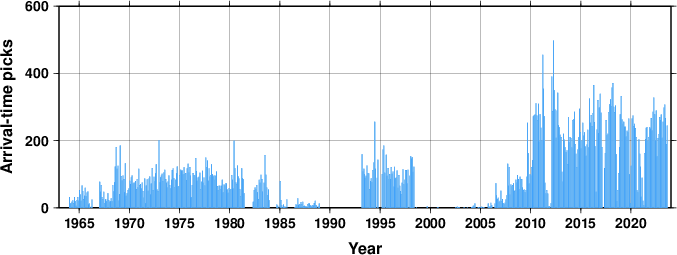

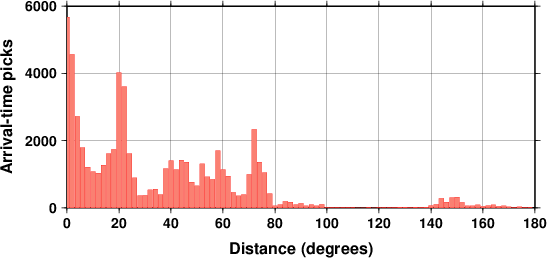

Arrival picks statistics

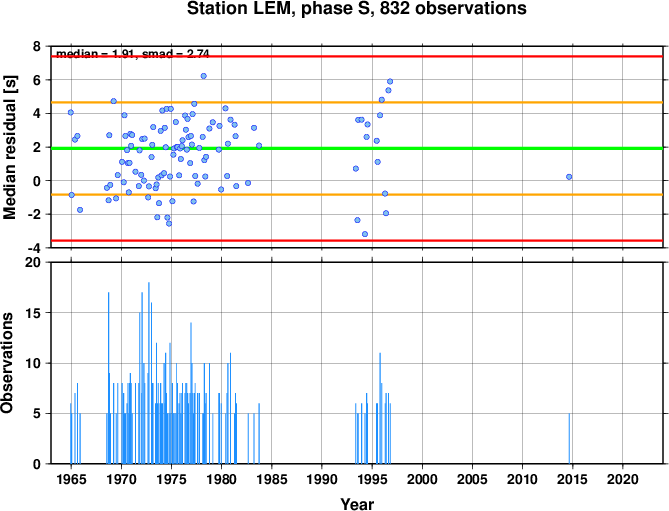

Travel Time Analysis
On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

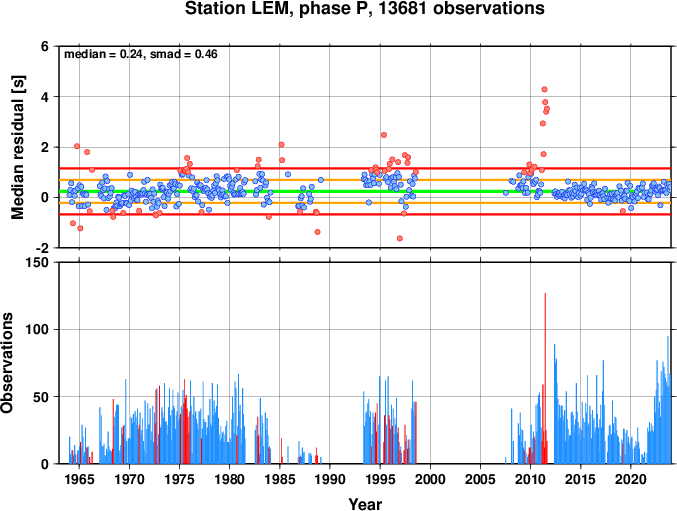

Travel time residuals

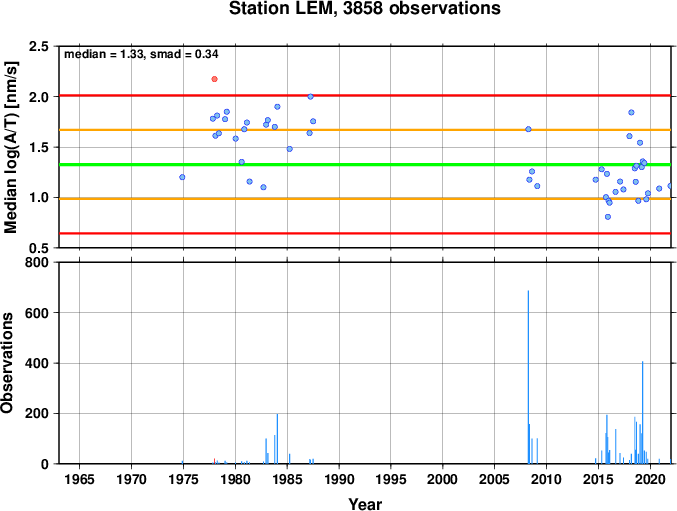

Amplitude analysis
 On the top graph every dot represents the median value for that month of data.
The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line (if present) shows twice the standard deviation (2 * smad).
The bottom graph shows the number of observations for each month. Any red columns show those observations whose monthly median value is greater than twice the standard deviation (2 * smad) from the overall (running) median (shown in the top graph by red dots).

Red dots indicate a possible calibration error.


Station comments:
=================

Checked against station bulletin
PMC2-NPM-NPN-WWV-PLC(U)
opened 1954
WWSS opened 19641028
DWSS 19820602-19890906

Data at the ISC for 65 years between 1954 and 2024.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

LEM    Lembang                                                       -6.82633  107.61800    1252.0         25-08-1999 07-11-2007
       Jawa,Indonesia

LEM    Lembang                                                       -6.82660  107.61750    1252.0  1293.0 07-11-2007 07-11-2007
       Jawa,Indonesia
