Station details:
================

Code: LGR
Latitude:  42.45778
Longitude:   -2.50325
Elevation:   446.0
Depth:
Name: Logrono
Region: Spain
Status:

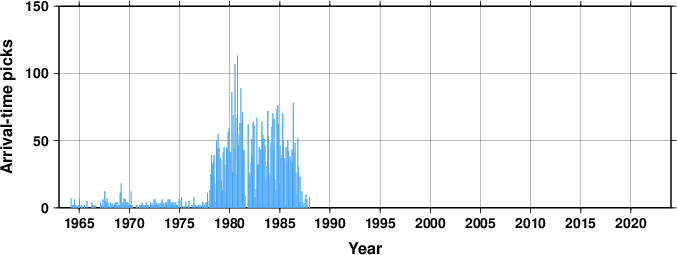

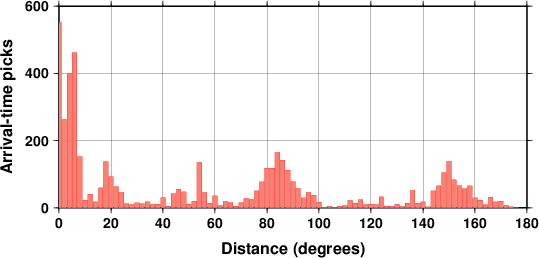

Arrival picks statistics
Travel Time Analysis

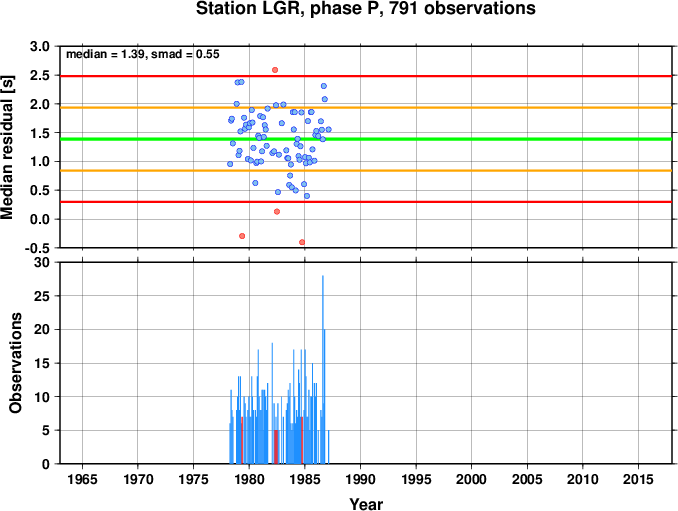

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

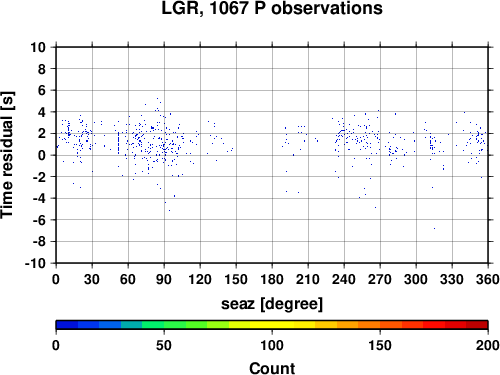

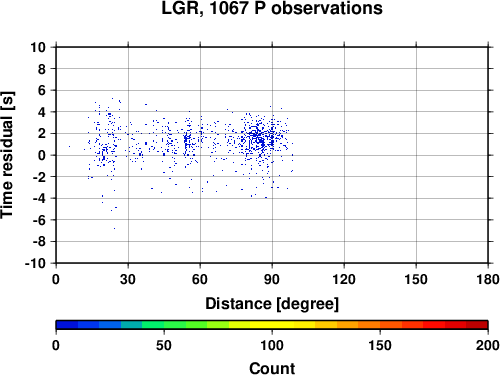

Travel time residuals


Station comments:
=================

Checked against station bulletin
NARS 1988-1989

Data at the ISC for 26 years between 1960 and 1987.
