Station details:
================

Code: LIJA
Latitude:  36.90606
Longitude:   -5.40378
Elevation:   951.0
Depth:
Name: Lijar
Region: Spain
Status:

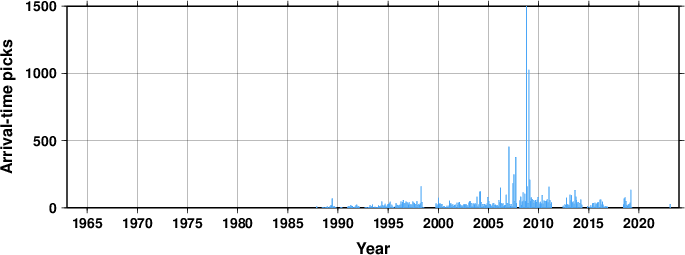

Arrival picks statistics
Travel Time Analysis

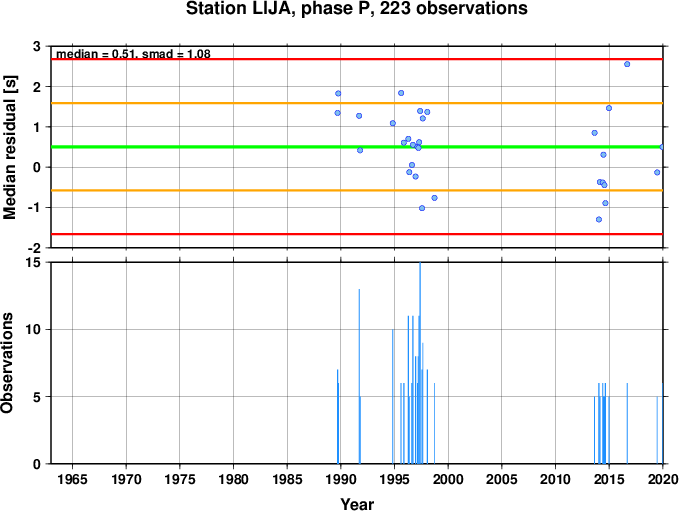

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

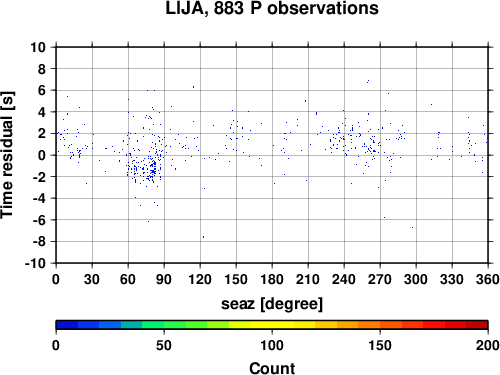

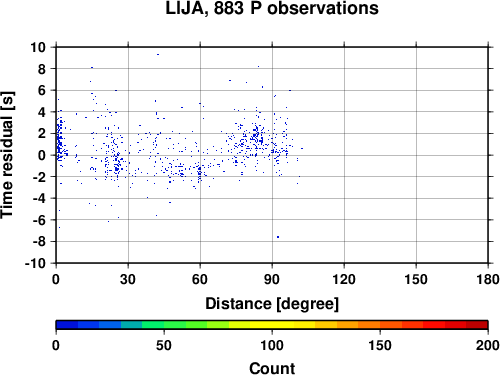

Travel time residuals


Station comments:
=================

opened 198711
resurveyed 1993

Data at the ISC for 34 years between 1987 and 2024.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

LIJA   Lijar                                                         36.89830   -5.41167     970.0         25-08-1999 25-08-1999
       Spain
