Station details:
================

Code: LKP

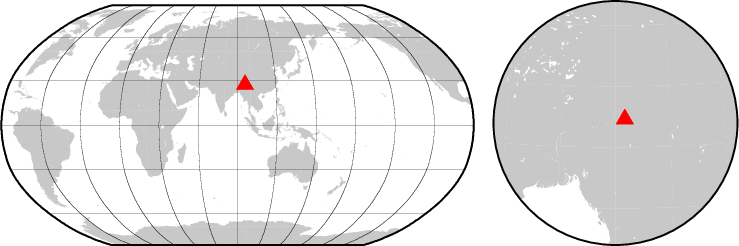

Latitude:  27.33299
Longitude:   95.84608
Elevation:   139.0
Depth:
Name: Lekhapani
Region: Assam,India
Status:

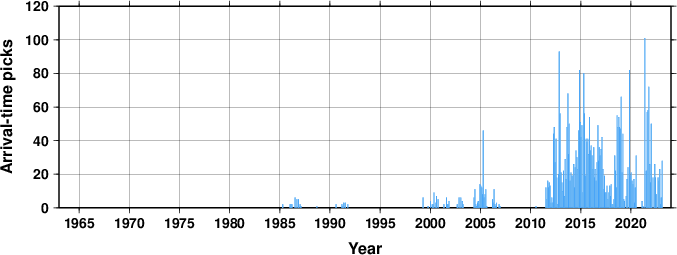

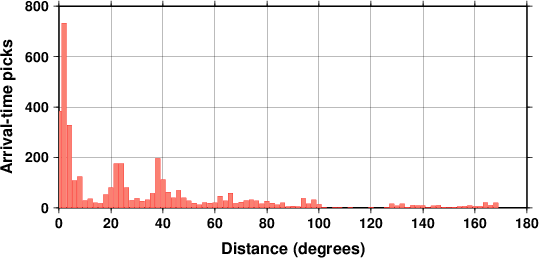

Arrival picks statistics
Travel Time Analysis

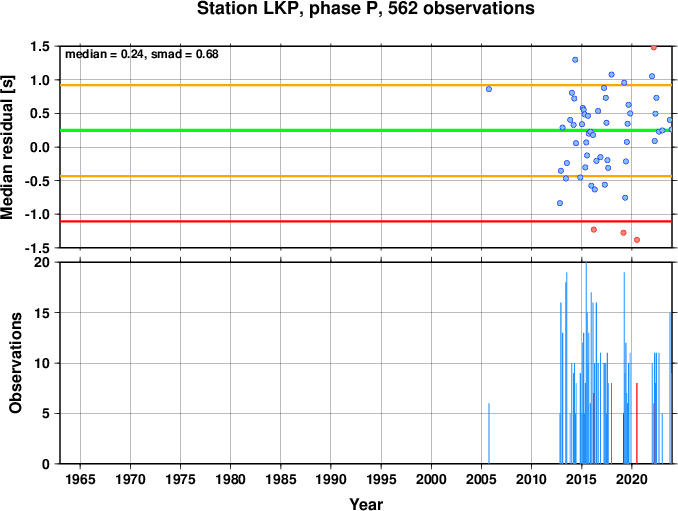

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

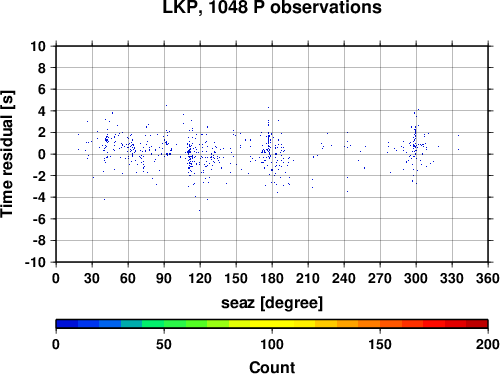

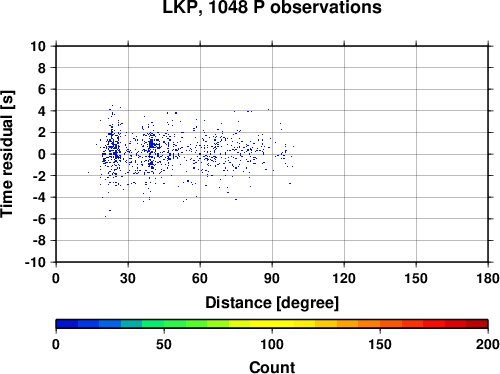

Travel time residuals


Station comments:
=================

Name corrected Feb 1998

Data at the ISC for 29 years between 1985 and 2023.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

LKP    Lekhapani                                                     27.33330   96.06670                   25-08-1999 25-08-1999
       Assam

LKP    Lekhapani                                                     27.33333   96.06667     148.0         25-08-1999 03-03-2000
       Assam
