Station details:
================

Code: LLAV
Latitude:  10.46961
Longitude:  -66.80969
Elevation:   875.0
Depth:
Name: El Llanito
Region: Venezuela
Status:

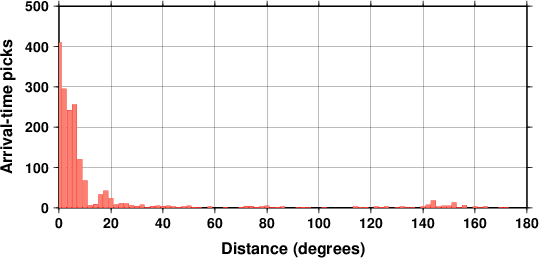

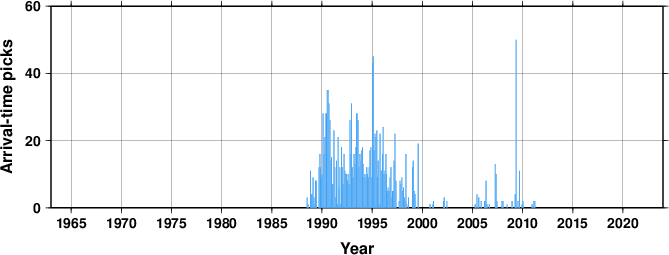

Arrival picks statistics
Travel Time Analysis

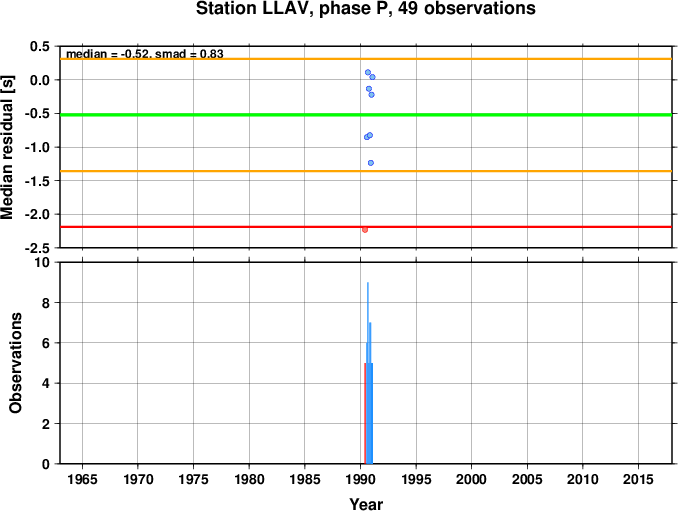

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

opened 1988
Moved or relocated?
Old coords 10.4750N, 66.8080W, 907m

Data at the ISC for 22 years between 1988 and 2011.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

LLAV   El Llanito                                                    10.47500  -66.80800     907.0         25-08-1999 25-08-1999
       Venezuela
