Station details:
================

Code: LQT
Latitude: -33.81472
Longitude:  -70.21194
Elevation:  1400.0
Depth:
Name: Los Queltehues
Region: Santiago,Chile
Status:

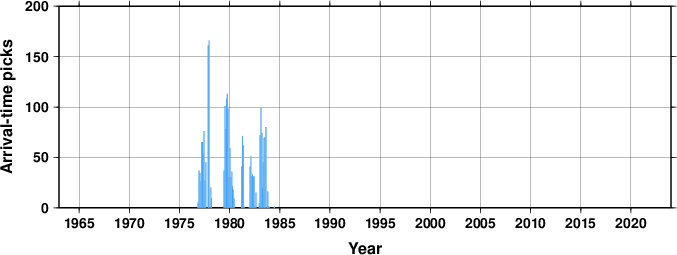

Arrival picks statistics
Travel Time Analysis

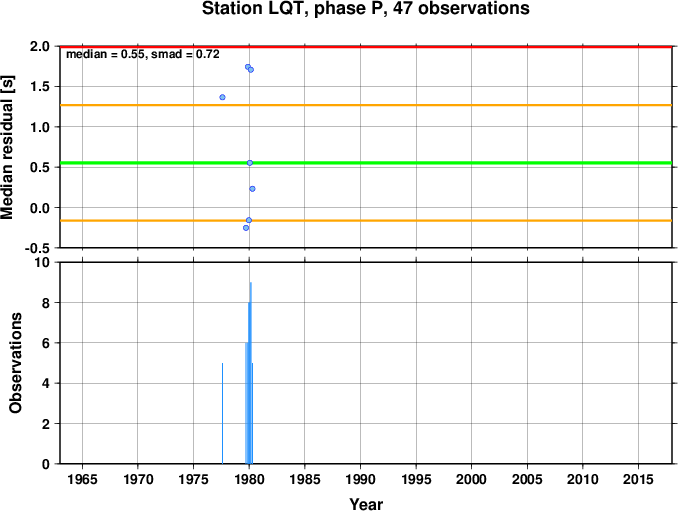

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

opened 19760626

Data at the ISC for 9 years between 1976 and 1984.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

LQT    Los Queltehues                                               -33.74810  -70.21190    1400.0         21-01-2003
       Santiago
