Station details:
================

Code: LSD
Latitude:  45.45950
Longitude:    7.13430
Elevation:  2285.0
Depth:
Name: Lago del Serru
Region: Italy
Status:

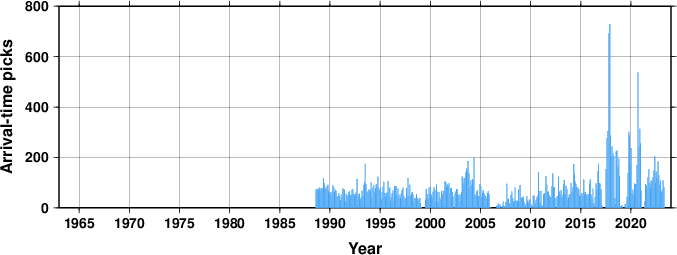

Arrival picks statistics
Travel Time Analysis

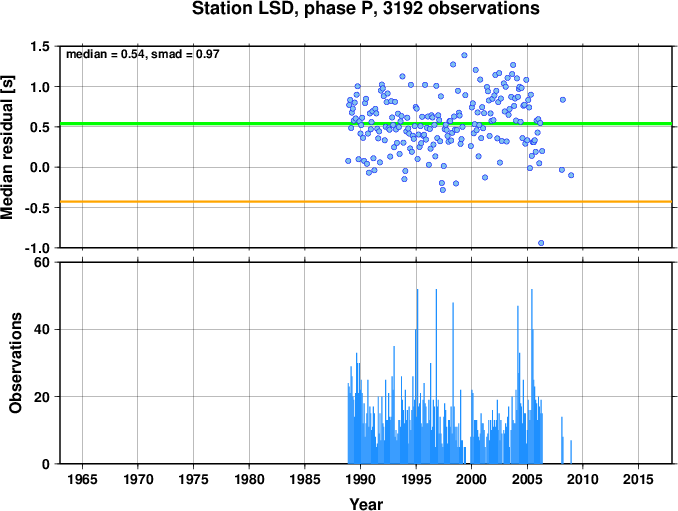

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

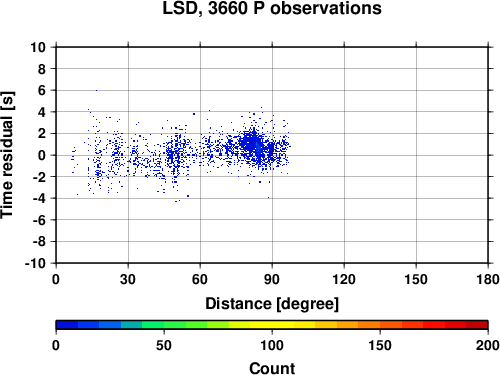

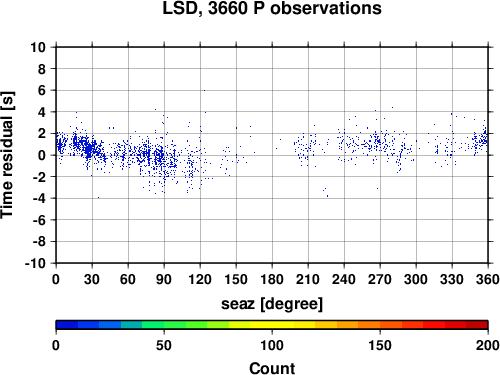

Travel time residuals


Station comments:
=================

Piemonte
Network - RSNI

Data at the ISC for 38 years between 1988 and 2025.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

LSD    Ceresole Reale                                                45.45770    7.15567    2284.0         25-08-1999 22-09-2009
       Italy
