Station details:
================

Code: LVV
Latitude:  49.81900
Longitude:   24.03100
Elevation:   320.0
Depth:
Name: L'vov
Region: Carpathian Mountains
Status:

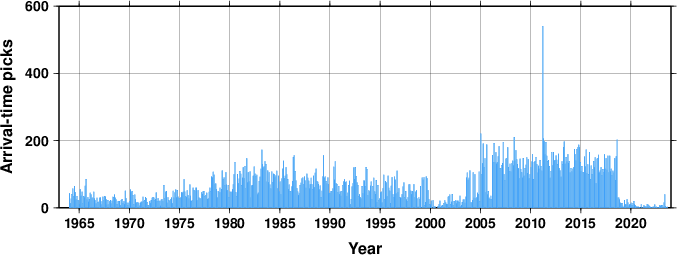

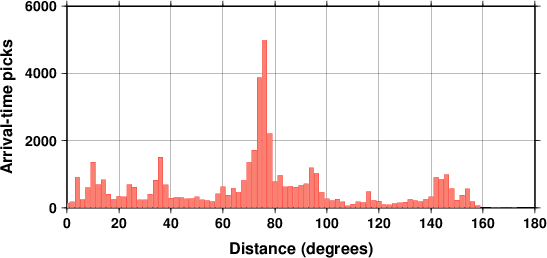

Arrival picks statistics
Travel Time Analysis

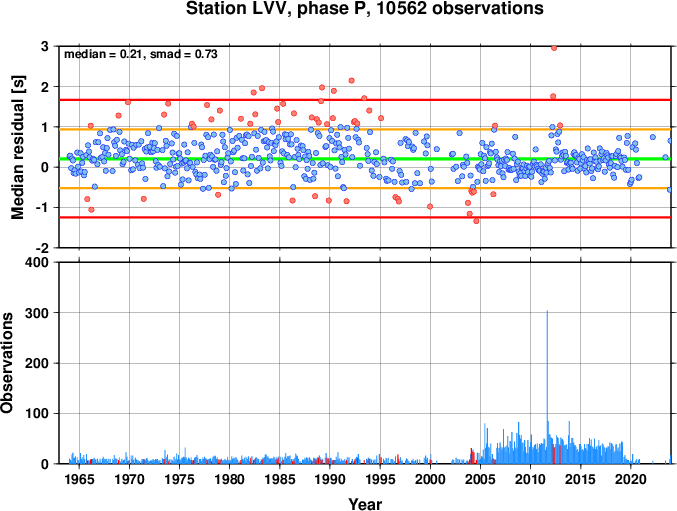

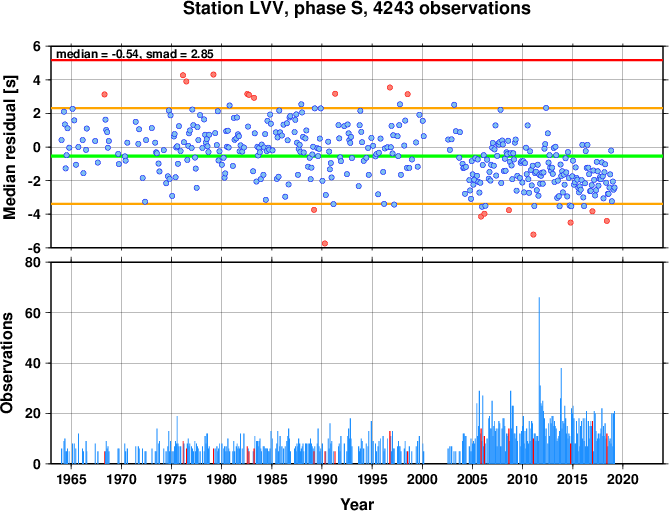

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

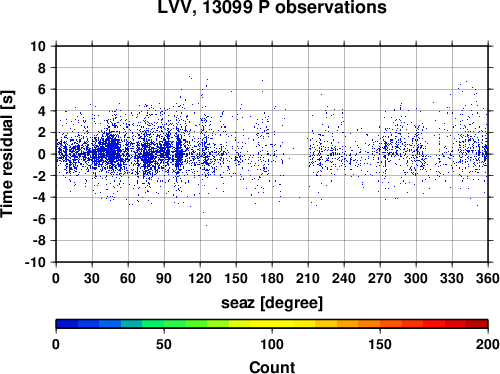

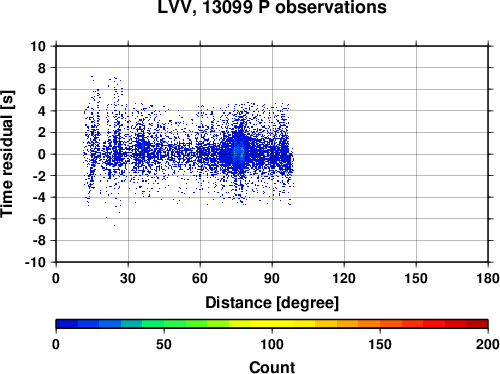

Travel time residuals
Amplitude analysis
 On the top graph every dot represents the median value for that month of data.
The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line (if present) shows twice the standard deviation (2 * smad).
The bottom graph shows the number of observations for each month. Any red columns show those observations whose monthly median value is greater than twice the standard deviation (2 * smad) from the overall (running) median (shown in the top graph by red dots).

Red dots indicate a possible calibration error.


Station comments:
=================

Checked against station bulletin
L'wow, Lemberg
XC2R4-RAT-RCH-RID-RIM-RKM-RTA-RWM
opened 1949
Coords corrected 20000115
Sent to NEIS by OBN

Data at the ISC for 99 years between 1913 and 2024.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

LVV    L'vov                                                         49.81670   24.03330     308.0         25-08-1999 25-08-1999
       Ukraina

LVV    L'vov                                                         49.81667   24.03333     308.0         25-08-1999 03-03-2000
       Ukraina

LVV    L'vov                                                         49.81900   24.03100     320.0         03-03-2000 03-03-2000
       Ukraina
