Station details:
================

Code: MTE
Latitude:  40.39969
Longitude:   -7.54419
Elevation:   815.0
Depth:
Name: Manteigas
Region: Portugal
Status:

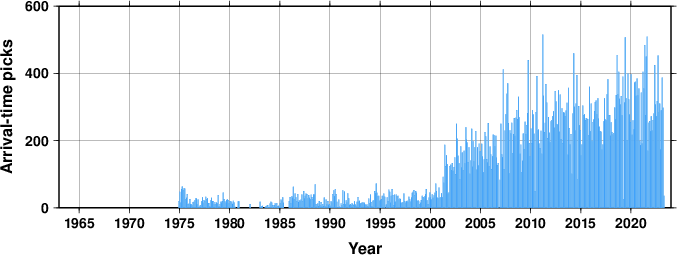

Arrival picks statistics
Travel Time Analysis

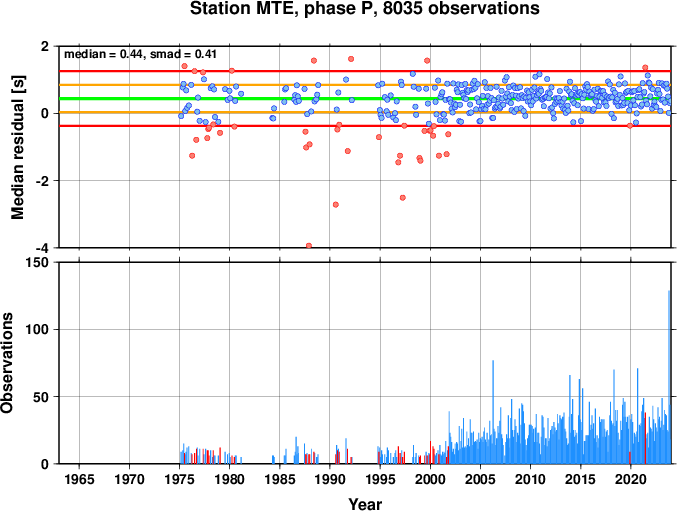

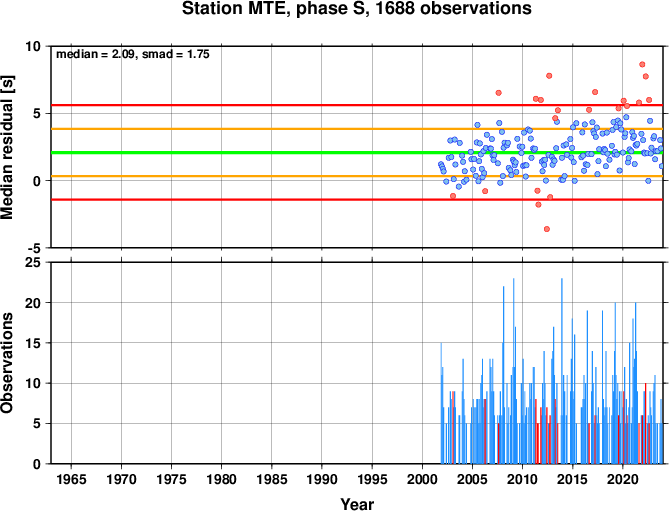

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

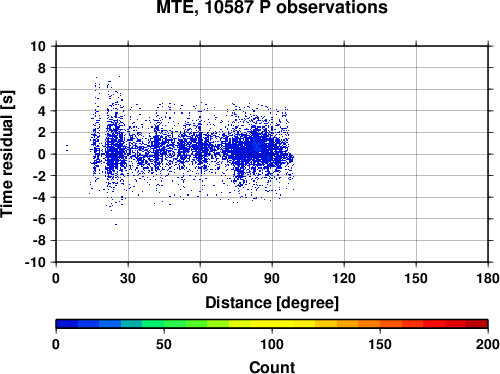

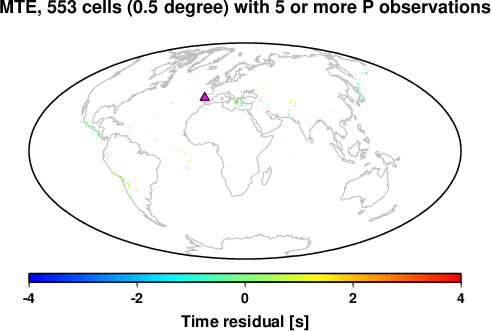

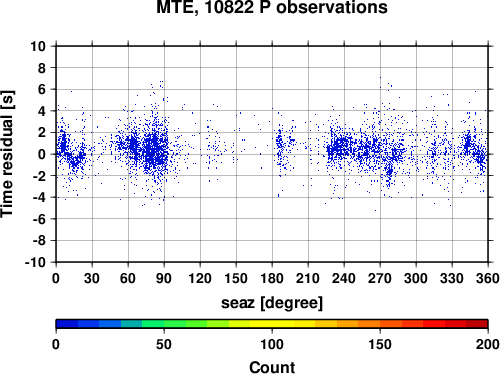

Travel time residuals


Station comments:
=================

opened 19741210
NARS 1988-1989
GFON opened 199710

Data at the ISC for 51 years between 1974 and 2025.
