Station details:
================

Code: NAL
Latitude:  40.20940
Longitude:   31.30920
Elevation:  1390.0
Depth:
Name: Nallihan
Region: Turkey
Status:

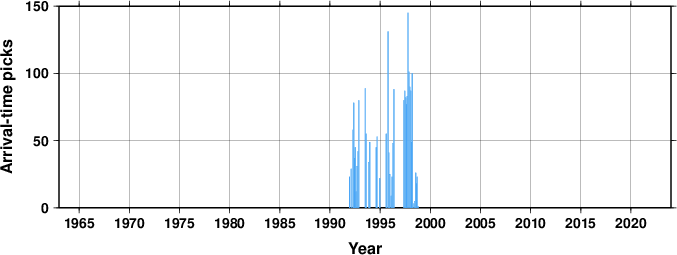

Arrival picks statistics
Travel Time Analysis

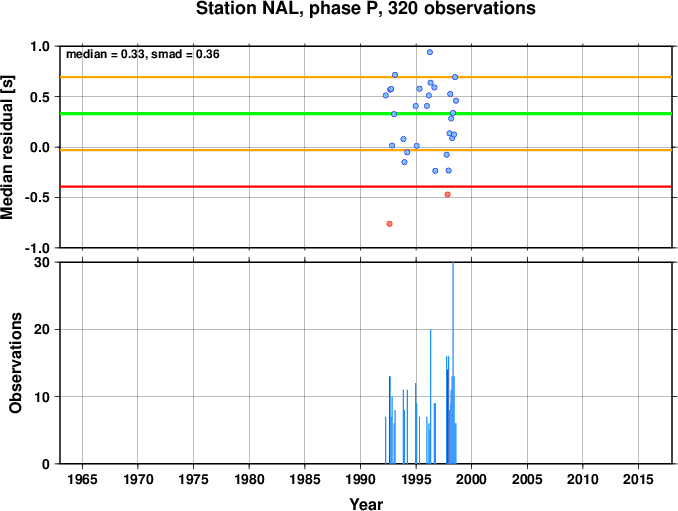

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

closed 30-09-1998
Checked against station bulletin
Coordinates corrected Oct 1994
opened 1991

Data at the ISC for 9 years between 1991 and 1999.
