Station details:
================

Code: NAX
Latitude:  39.17400
Longitude:   45.49500
Elevation:   927.0
Depth:
Name: Nakhchivan
Region: Azerbaijan
Status:


Arrival picks statistics
Travel Time Analysis

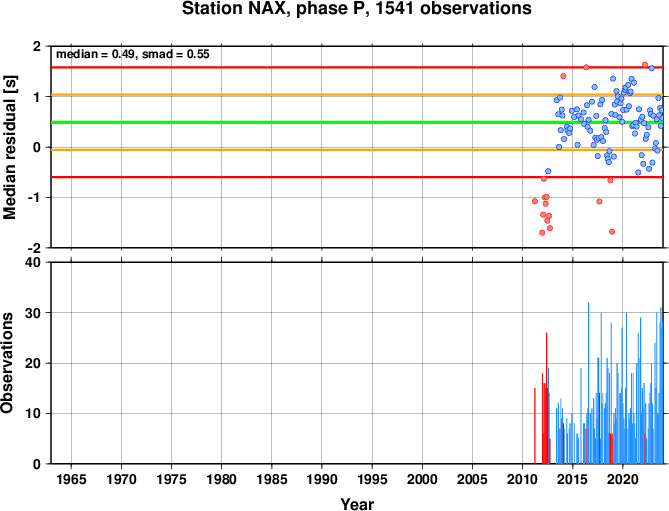

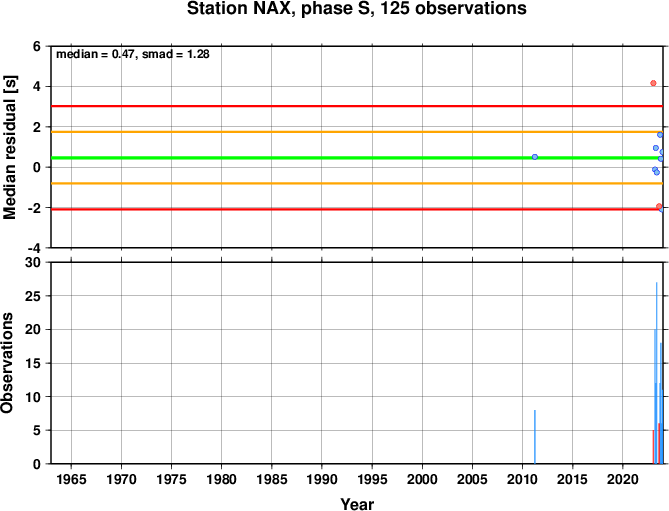

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

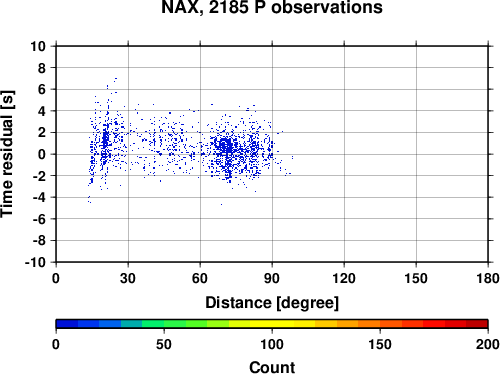

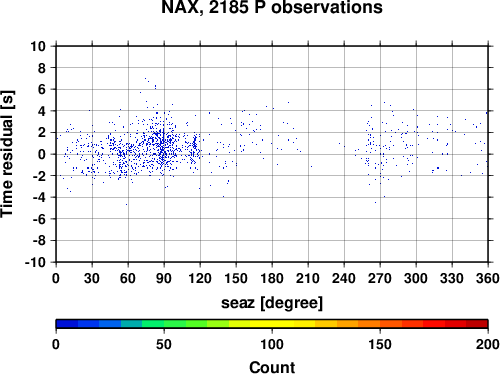

Travel time residuals


Station comments:
=================


Data at the ISC for 19 years between 2006 and 2024.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

NAX    Nakhchivan                                                    39.17400   45.49480     920.0         09-12-2004 29-09-2007
       Azerbaijan
