Station details:
================

Code: NBO00
Latitude:  61.03075
Longitude:   10.77767
Elevation:   529.0
Depth:
Name: NORSAR Array Site 01B00
Region: Norway
Status:


NBO00 is an alternative code for NBO

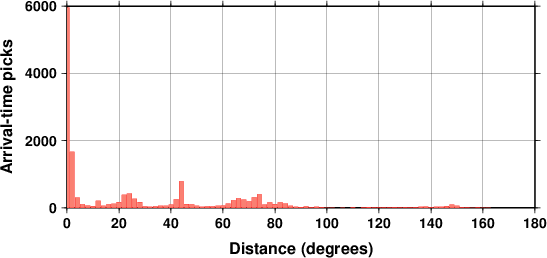

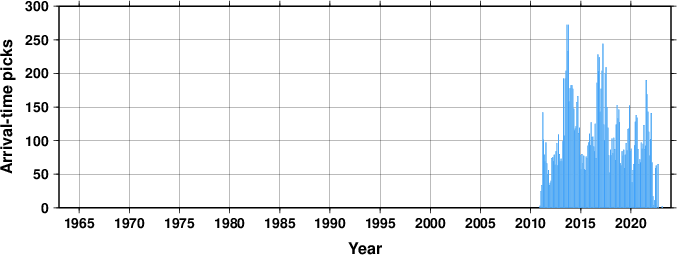

Arrival picks statistics
Travel Time Analysis

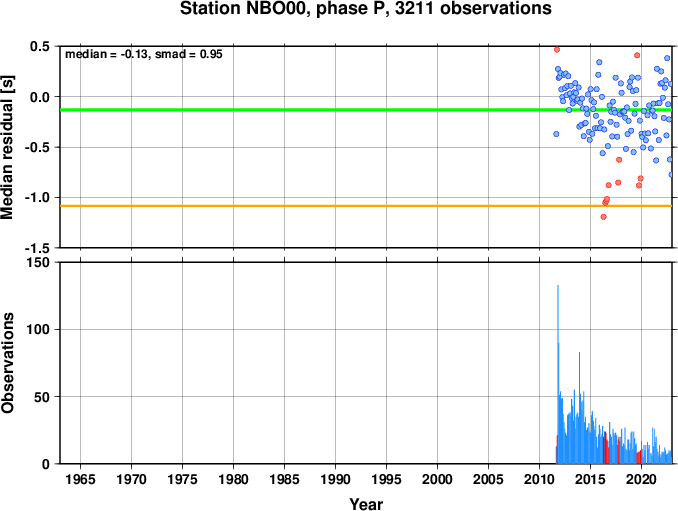

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

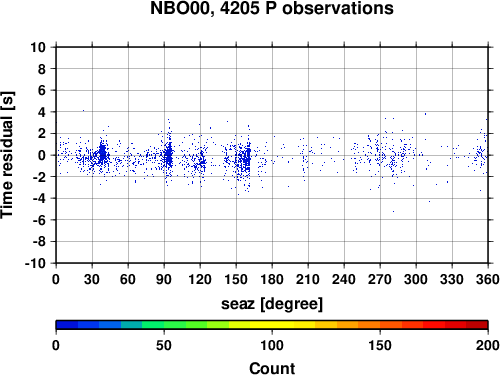

Travel time residuals


Station comments:
=================

BB instr
at 10.7774E

Data at the ISC for 16 years between 2010 and 2025.
