Station details:
================

Code: NEEM
Latitude:  77.44500
Longitude:  -51.06500
Elevation:  2460.0
Depth:     6.0

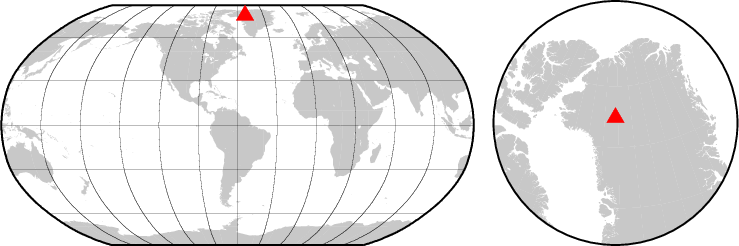

Name: North Greenland Eemian Ice Drilling site
Region: Greenland
Status:

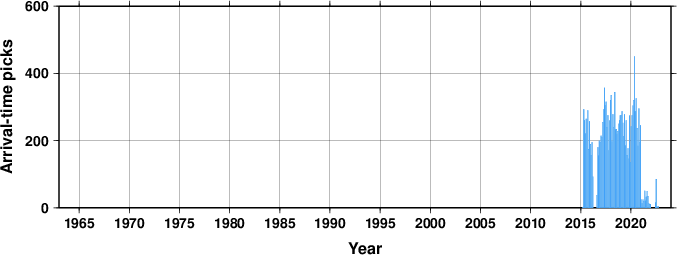

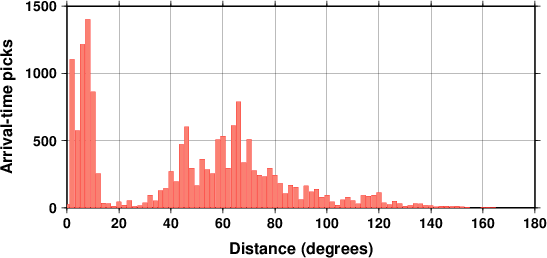

Arrival picks statistics
Travel Time Analysis

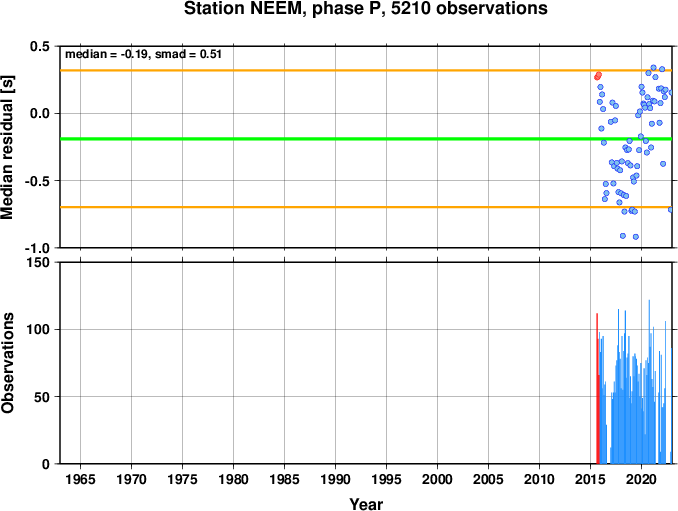

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.
Travel time residuals


Station comments:
=================

STS-2 and reftek 130 was installed the 22nd Aug 2007 on the icecap,
horizontal conp. was lost after a few days due to ice tilting. Power was
lost on the 9th Oct. The station was down until is was reinstalled on
the 26th of July 2008.

Data at the ISC for 8 years between 2015 and 2022.
