Station details:
================

Code: NEL
Latitude:  35.71222
Longitude: -114.84333
Elevation:   999.7
Depth:
Name: Nelson
Region: Nevada,U.S.A.
Status:

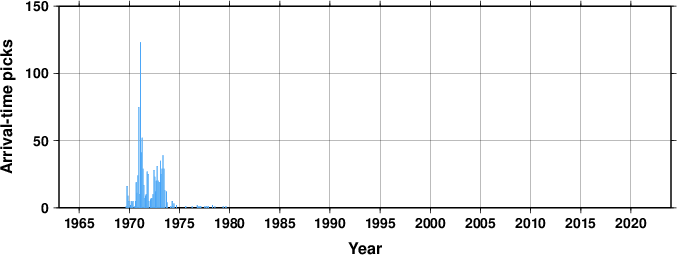

Arrival picks statistics
Travel Time Analysis

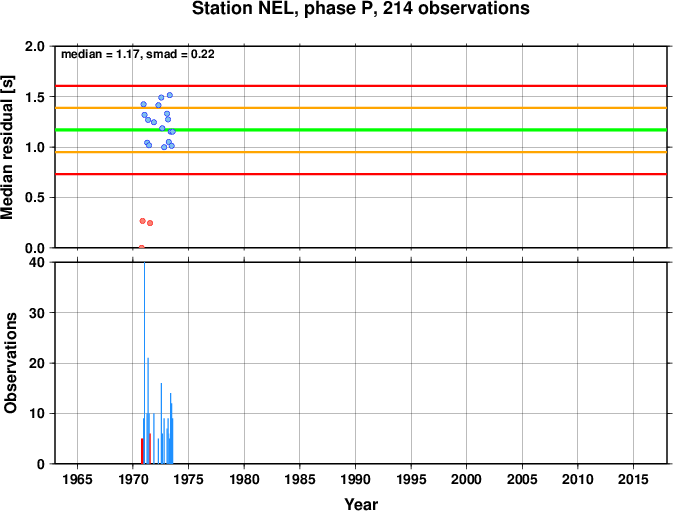

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

XC2-WWVB
196310-1981?
199002-199806
REN 199002-199806
USTN before 198009-before 198211

Data at the ISC for 20 years between 1951 and 1996.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

NEL    Nelson                                                        35.71220 -114.84400    1000.0         25-08-1999 25-08-1999
       Nevada
