Station details:
================

Code: NEVS
Latitude:  43.29900
Longitude:   18.10300
Elevation:   894.0
Depth:     0.0
Name: Nevesinje
Region: Bosnia and Herzegovina
Status:

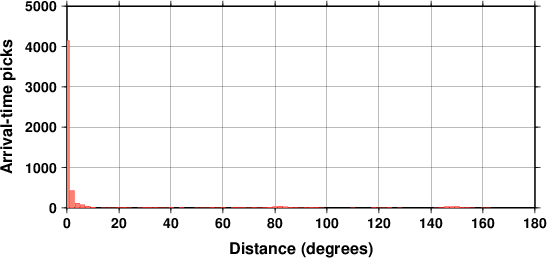

Arrival picks statistics
Travel Time Analysis
On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).

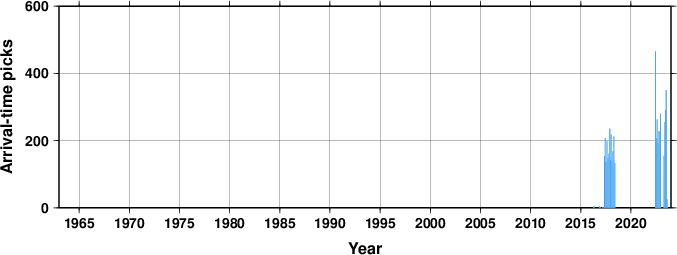

The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================


Data at the ISC for 5 years between 2016 and 2023.
