Station details:
================

Code: NKME
Latitude:  42.76700
Longitude:   18.95300
Elevation:   690.0
Depth:     2.0
Name: Niksic
Region: Montenegro
Status:

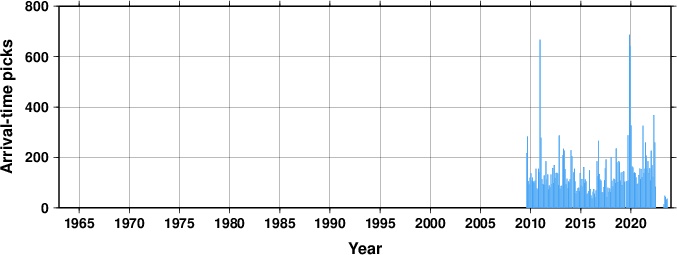

Arrival picks statistics
Travel Time Analysis

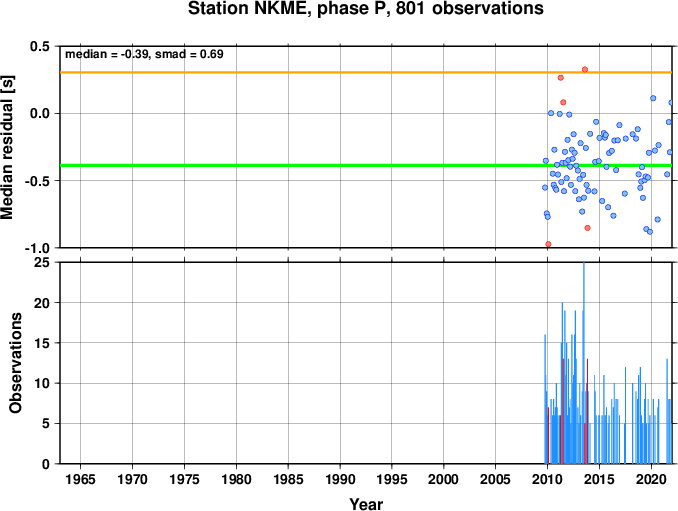

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

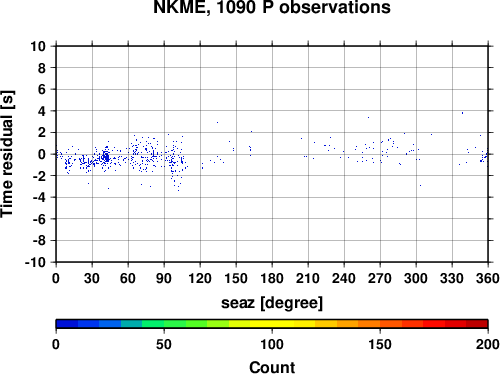

Travel time residuals


Station comments:
=================

NKME is a station of Montenegrian Seismic Network. Seismic sensor on
station is vertical, short-period (self period 1 second) of the S-13
Updated WGS coordinates received November 2010
type, Geotech, USA.

Data at the ISC for 16 years between 2009 and 2024.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

NKME   Niksic                                                        42.76700   18.95290     686.0     2.0 05-06-2009 19-11-2010
       Montenegro
