Station details:
================

Code: NMC
Latitude:  35.84283
Longitude: -117.90483
Elevation:   951.0
Depth:
Name: Nine Mile Canyon
Region: California,U.S.A.
Status:


Arrival picks statistics
Travel Time Analysis

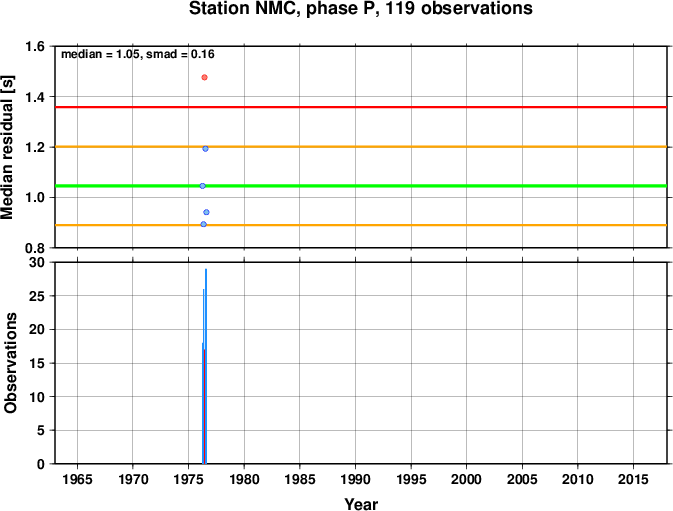

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

opened 19750925
MNLO code WNMC

Data at the ISC for 10 years between 1976 and 2009.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

NMC    Nine Mile Canyon                                              35.84400 -117.90700    1080.0         21-01-2003
       California
