Station details:
================

Code: NOP
Latitude:  36.12711
Longitude: -116.15219
Elevation:   983.0
Depth:
Name: Nopah Range
Region: California,U.S.A.
Status:

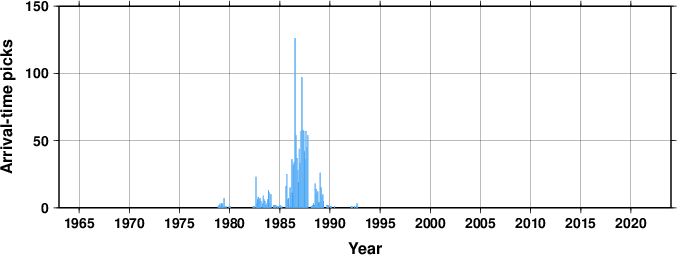

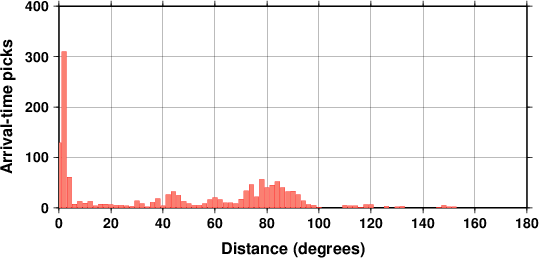

Arrival picks statistics
Travel Time Analysis

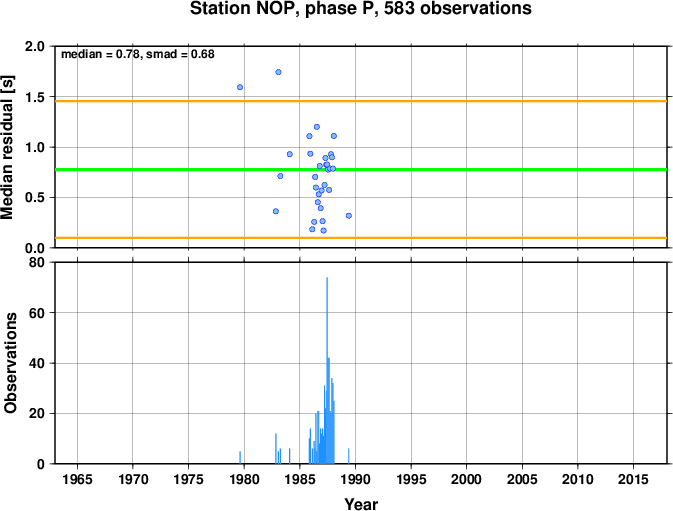

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

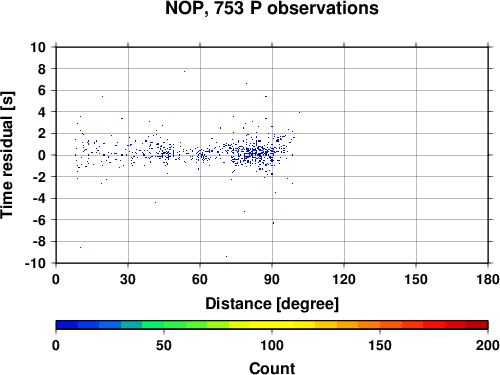

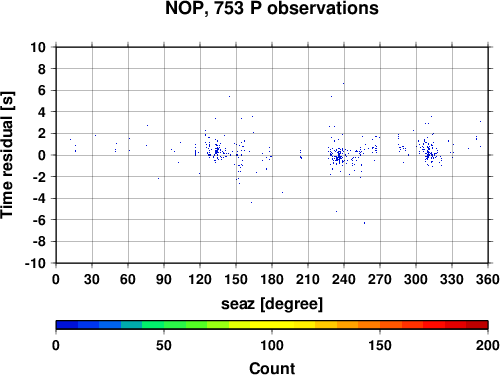

Travel time residuals


Station comments:
=================

USGS 19780724-19921001
REN 19921001-before 2002
MNLO code NOPD
Coords corrected slightly 20021209

Data at the ISC for 13 years between 1978 and 1992.
