Station details:
================

Code: NRIL
Latitude:  69.50489
Longitude:   88.44139
Elevation:    92.0
Depth:
Name: Noril'sk
Region: Krasnoyarskiy Kray,Russia
Status:

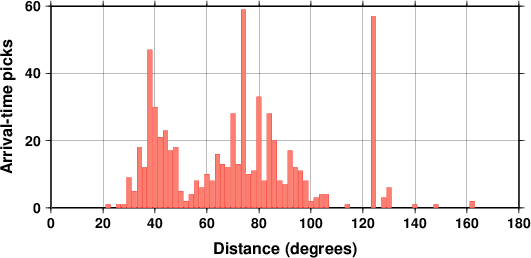

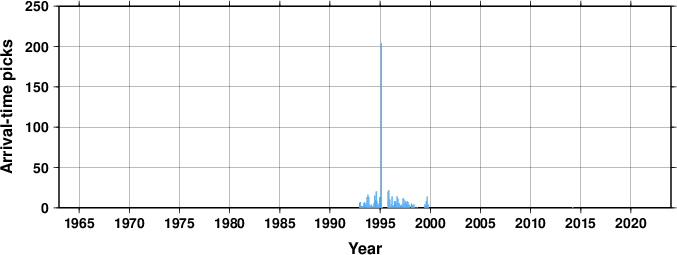

Arrival picks statistics
Travel Time Analysis

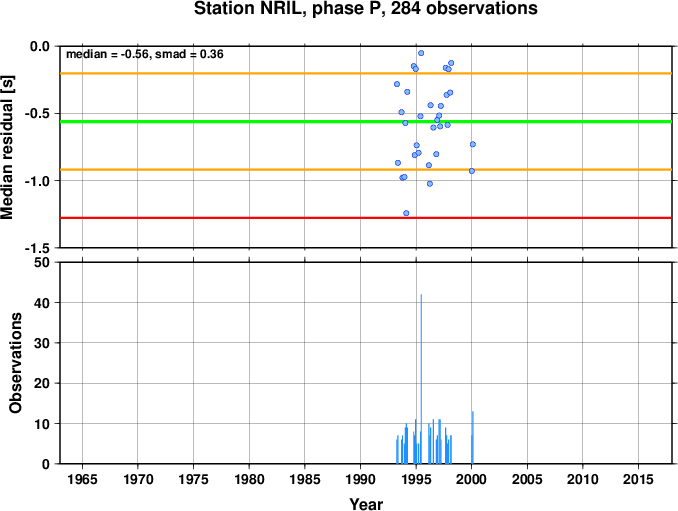

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

IRIS-IDA opened 19921215

Data at the ISC for 9 years between 1992 and 2014.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

NRIL   Noril'sk                                                      69.50470   88.44140      92.0         25-08-1999 25-08-1999
       Krasnoyarskiy
