Station details:
================

Code: NUUG
Latitude:  71.53860
Longitude:  -53.20010
Elevation:    40.0
Depth:     0.0
Name: Nuugaatsiaq
Region: Greenland
Status:

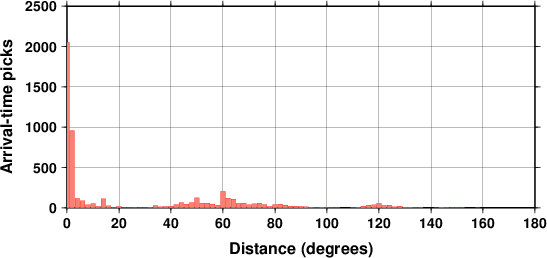

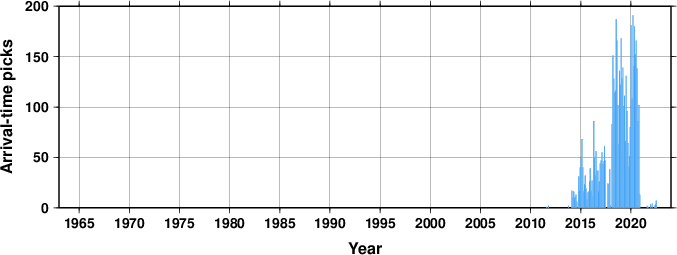

Arrival picks statistics
Travel Time Analysis

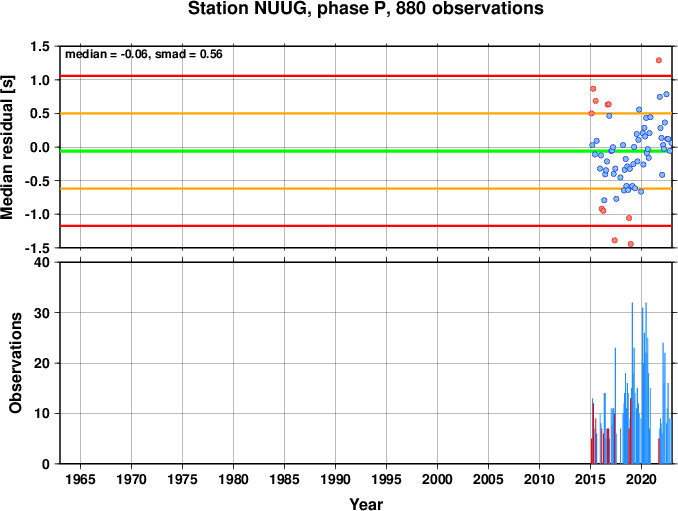

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

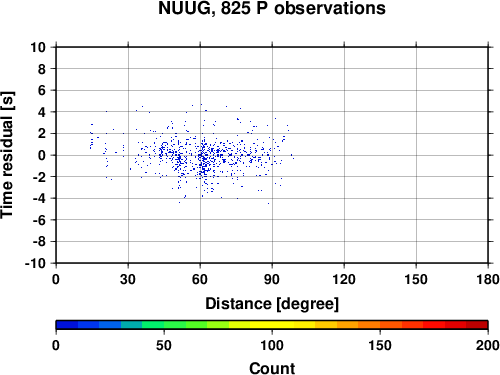

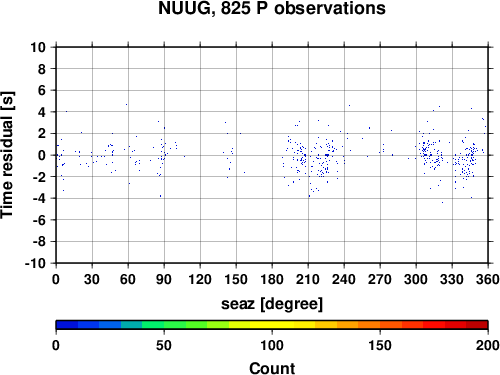

Travel time residuals


Station comments:
=================

Network code DK (like other SED station ILULI , KULLO) please note the
exact coords may change following summer installation - this is a
request to block the station code

Data at the ISC for 11 years between 2011 and 2022.
