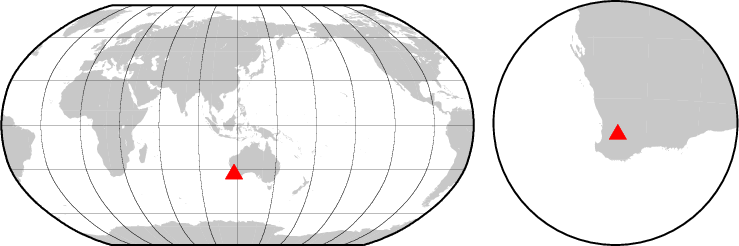

Station details:
================

Code: NWA
Latitude: -32.92700
Longitude:  117.23400
Elevation:   365.0
Depth:
Name: Narrogin
Region: Western Australia,Australia
Status:


NWA is an alternative code for NWAO

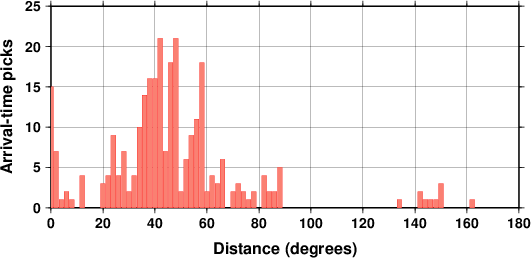

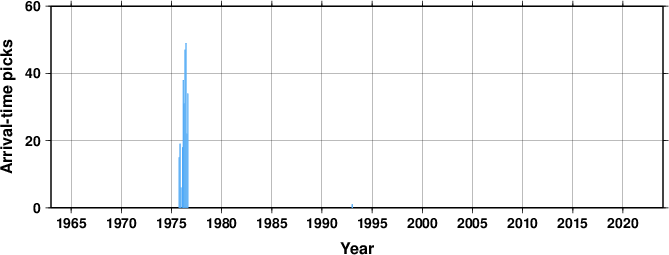

Arrival picks statistics
Travel Time Analysis

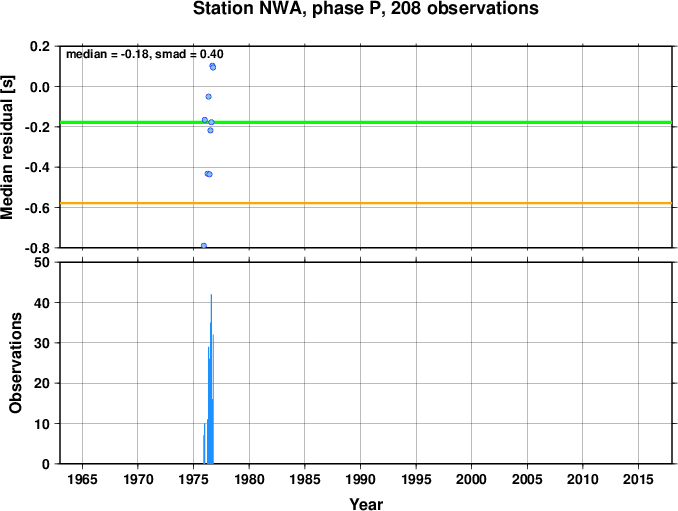

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

Checked against station bulletin
opened 19760213

Data at the ISC for 3 years between 1975 and 1993.
