Station details:
================

Code: OG26
Latitude:  44.57833
Longitude:    5.30220
Elevation:   840.0
Depth:
Name: St.-Nazaire-Desert
Region: Rhone-Alpes,France
Status:


OG26 is an alternative code for OCF

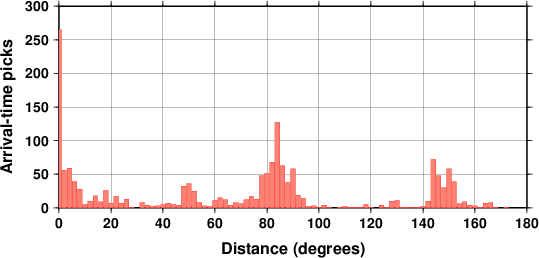

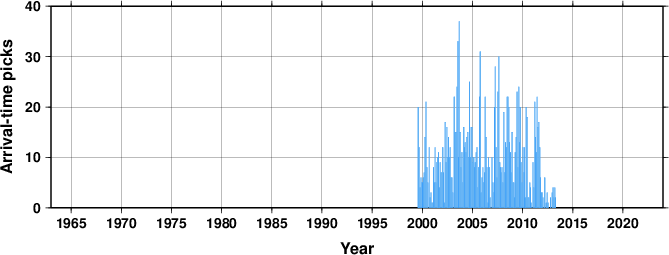

Arrival picks statistics
Travel Time Analysis

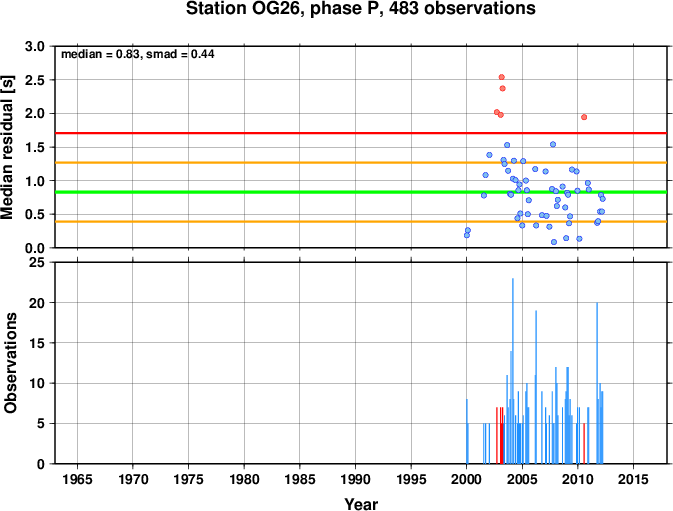

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

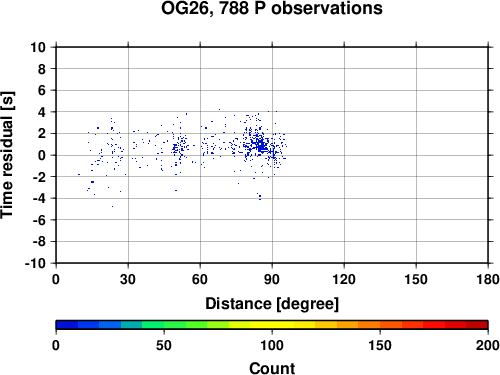

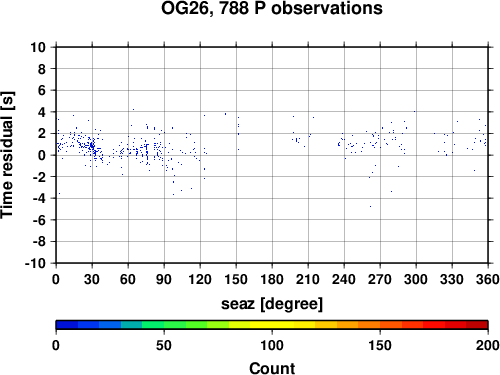

Travel time residuals


Station comments:
=================

Updated lon

Data at the ISC for 15 years between 1999 and 2013.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

OG26   Saint-Nazaire-le-D'esert                                      44.57833    5.30208     840.0         03-03-2000 03-03-2000


OG26   St.-Nazaire-Desert                                            44.57833    5.30208     840.0         03-03-2000 21-08-2003
       Rhone-Alpes

OG26   St.-Nazaire-Desert                                            44.57833    5.30208     840.0         21-08-2003 20-02-2006
       Rhone-Alpes,France
