Station details:
================

Code: ORO
Latitude:  45.62750
Longitude:    7.98139
Elevation:  1160.0
Depth:
Name: Oropa
Region: Italy
Status:

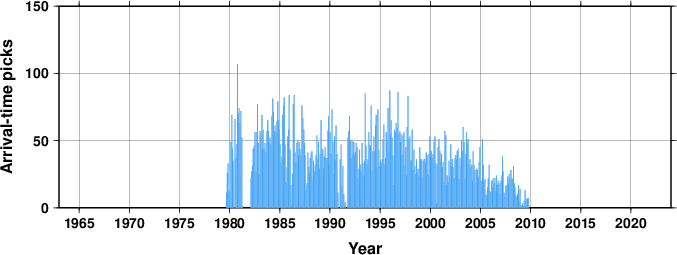

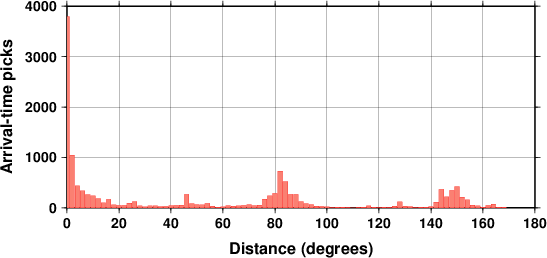

Arrival picks statistics
Travel Time Analysis

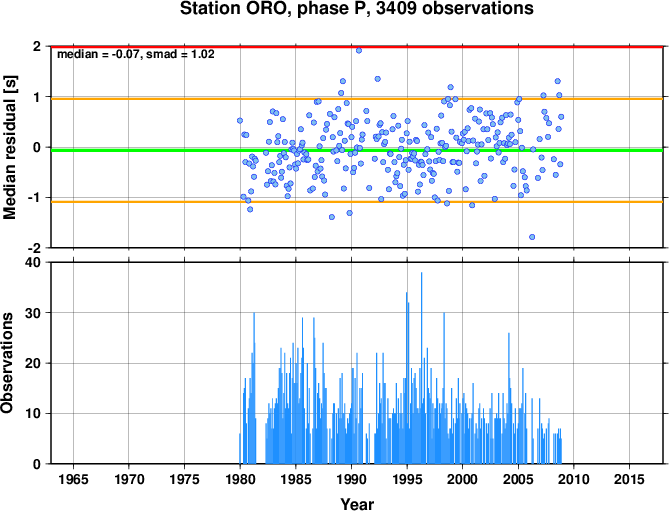

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

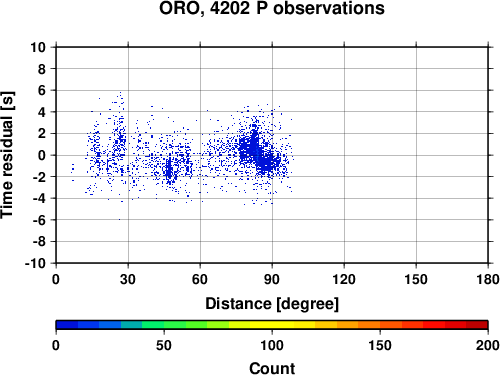

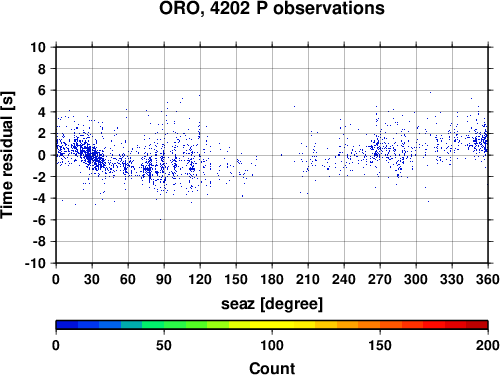

Travel time residuals


Station comments:
=================

reopened 198202
Coords corrected 199909

Data at the ISC for 40 years between 1952 and 2009.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

ORO    Oropa                                                         45.62500    7.98028    1162.0         25-08-1999 25-08-1999
       Italy
