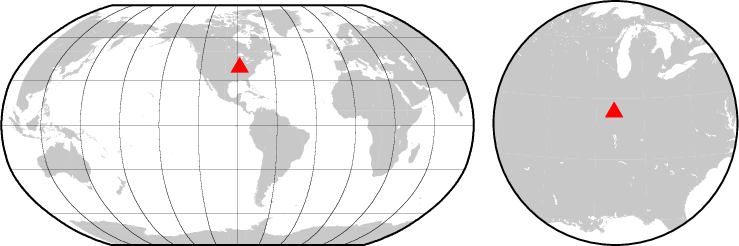

Station details:
================

Code: Q45A
Latitude:  38.89480
Longitude:  -88.15650
Elevation:   162.0
Depth:
Name: Warren Harvey, Newton
Region: Illinois,U.S.A.
Status:

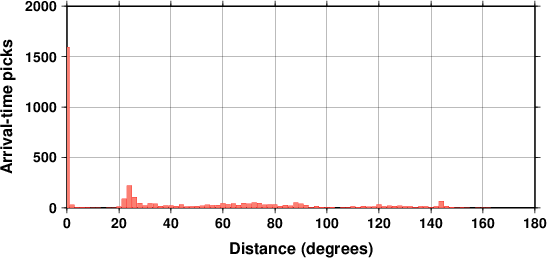

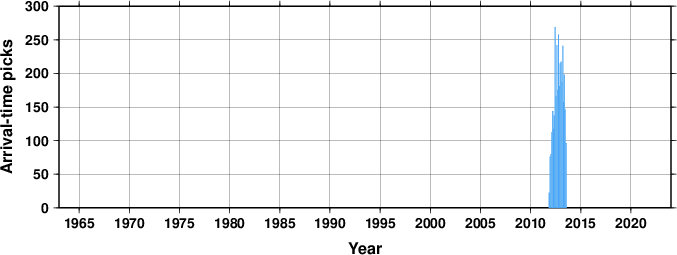

Arrival picks statistics
Travel Time Analysis

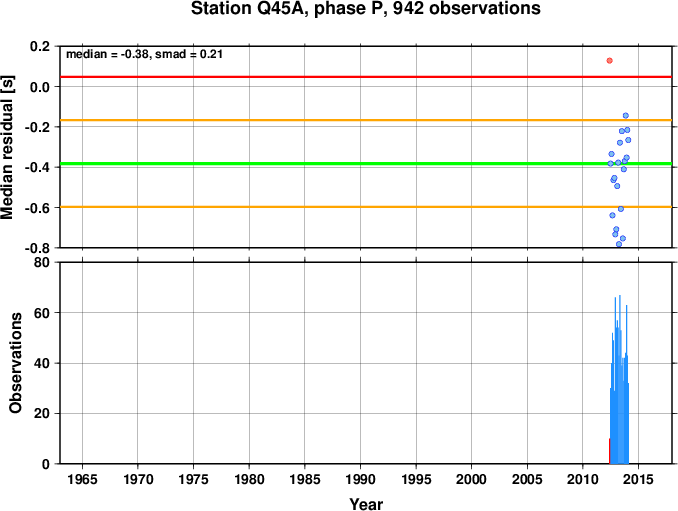

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

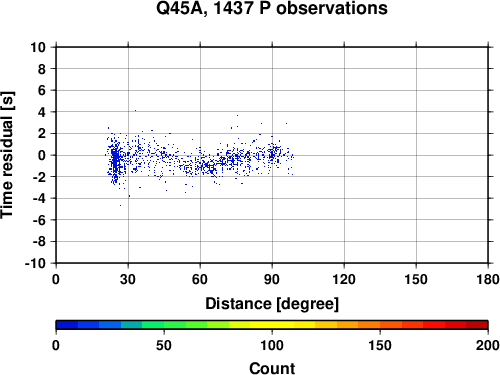

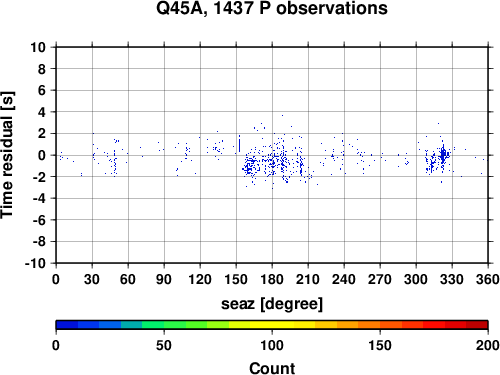

Travel time residuals


Station comments:
=================


Data at the ISC for 3 years between 2011 and 2013.
