Station details:
================

Code: QCP
Latitude:  14.63700
Longitude:  121.07700
Elevation:    58.0
Depth:
Name: Quezon City
Region: Luzon,Philippines
Status:

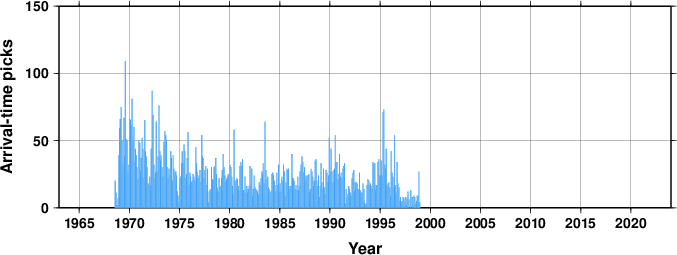

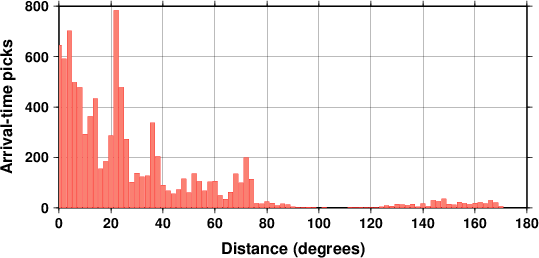

Arrival picks statistics
Travel Time Analysis

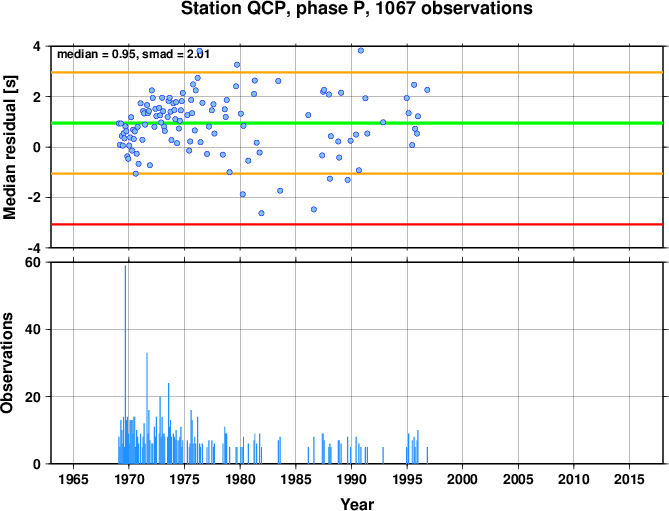

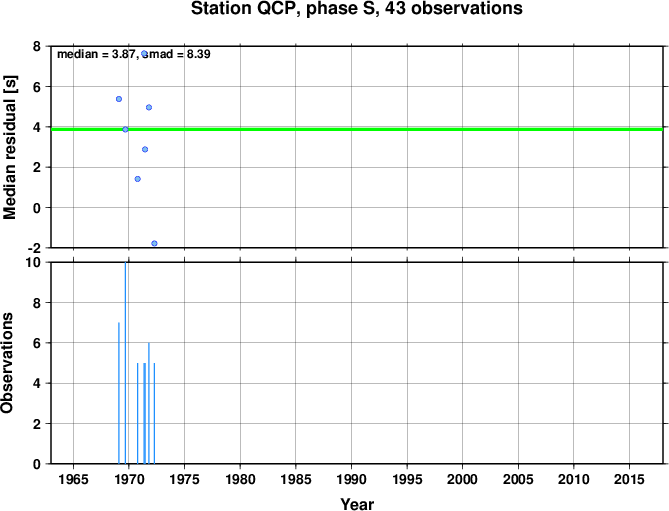

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

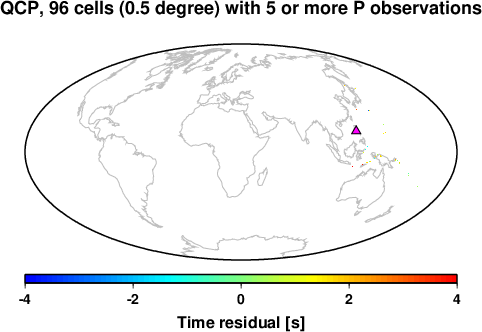

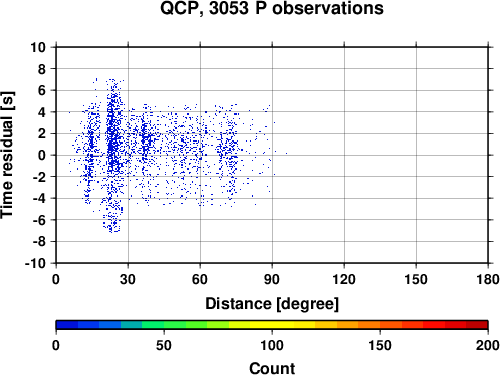

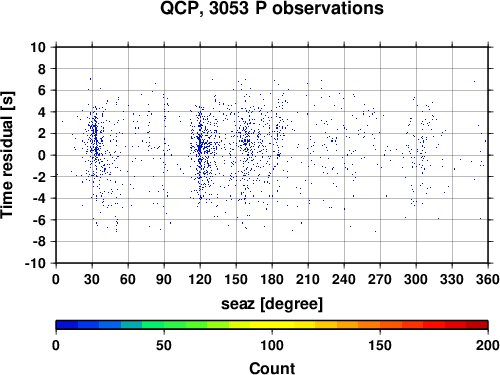

Travel time residuals


Station comments:
=================

XC1-JJY-WWV
opened 1868

Data at the ISC for 31 years between 1968 and 1998.
