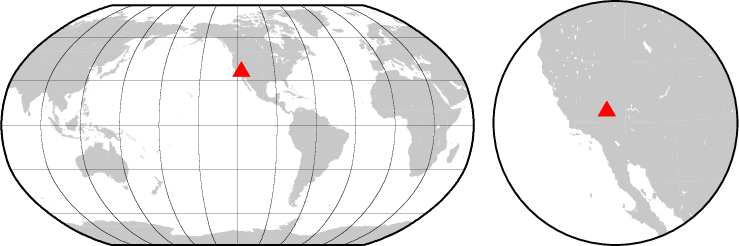

Station details:
================

Code: QSM
Latitude:  35.96500
Longitude: -116.86819
Elevation:   396.0
Depth:
Name: Queen of Sheba Mine
Region: California,U.S.A.
Status:

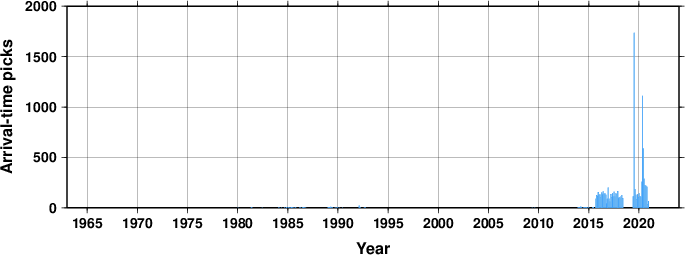

Arrival picks statistics
Travel Time Analysis

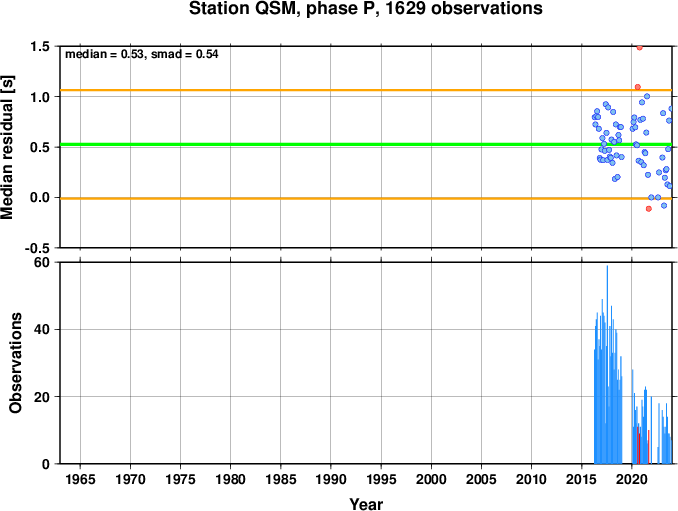

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

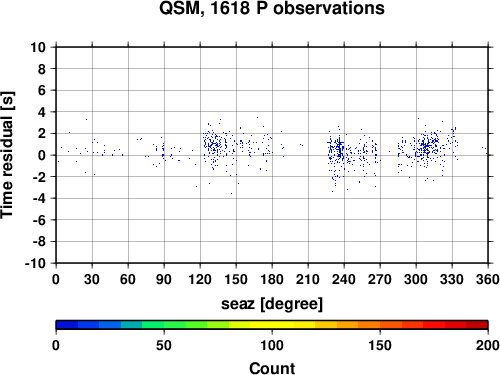

Travel time residuals


Station comments:
=================

Queen of Sheba Mine
USGS 19781128-19921001
REN opened 19921001
MNLO code QSMD

Data at the ISC for 19 years between 1980 and 2020.
