Station details:
================

Code: R9F13
Latitude:  52.22060
Longitude:   21.14130
Elevation:   105.0
Depth:     1.0
Name: Warsaw-Wawer
Region: Poland
Status:

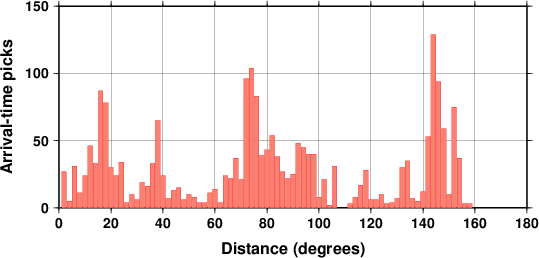

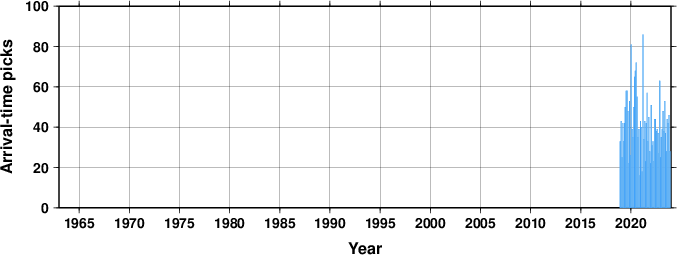

Arrival picks statistics
Travel Time Analysis

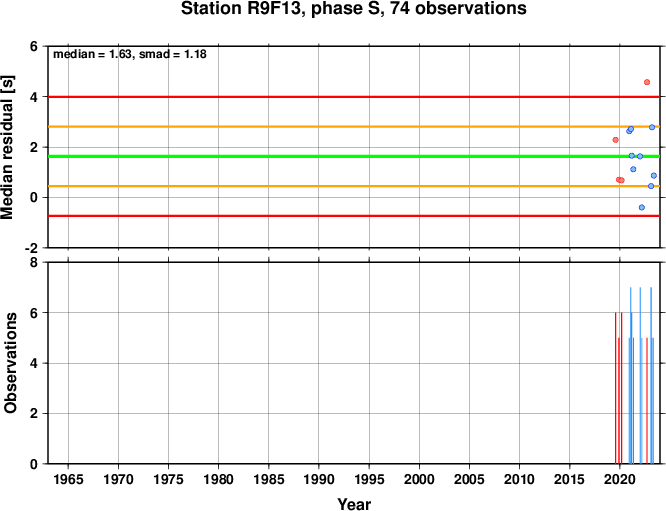

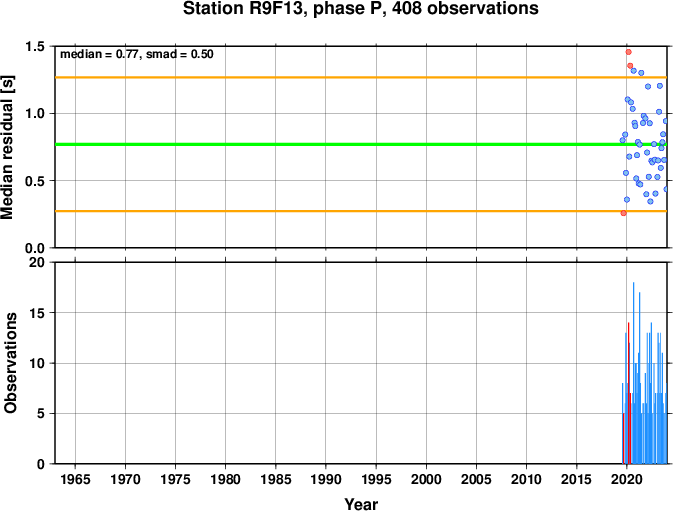

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

Raspberryshake station version 3D. Data network code AM. Data is
collected by Raspberry Shake S.A. and made available to IRIS. Station is
located in Wawer - a quiet district of city of Warsaw, nevertheless it
is in the city - with consequences in terms of noise.

Data at the ISC for 8 years between 2018 and 2025.
