Station details:
================

Code: RAF

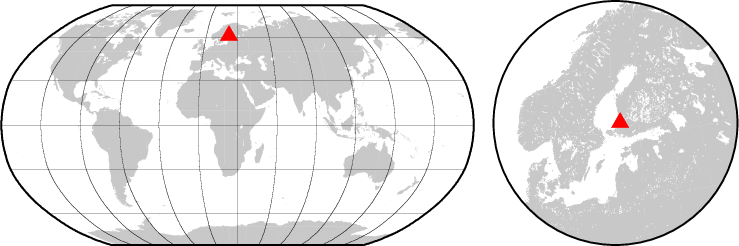

Latitude:  61.02300
Longitude:   21.76400
Elevation:    30.0
Depth:
Name: Rauma
Region: Finland
Status:

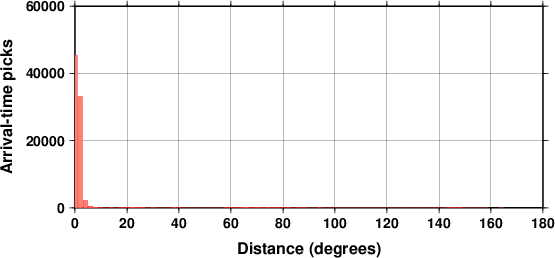

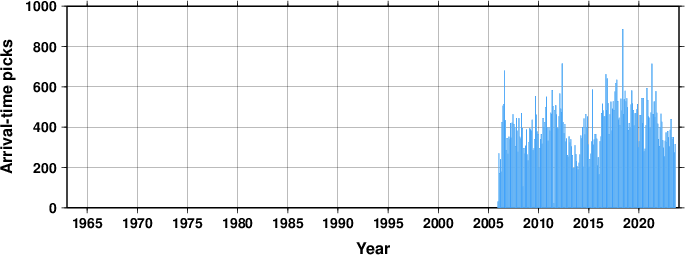

Arrival picks statistics
Travel Time Analysis

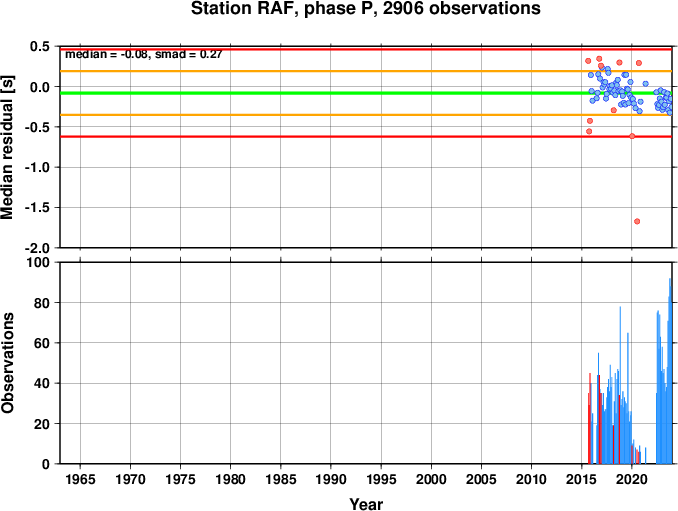

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

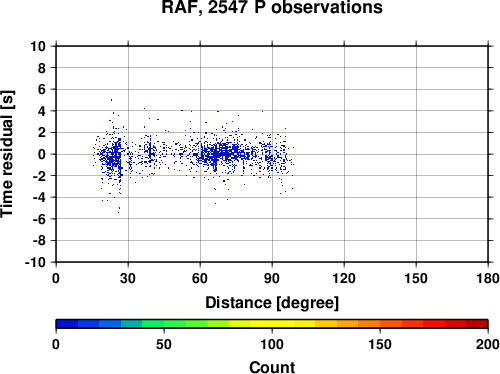

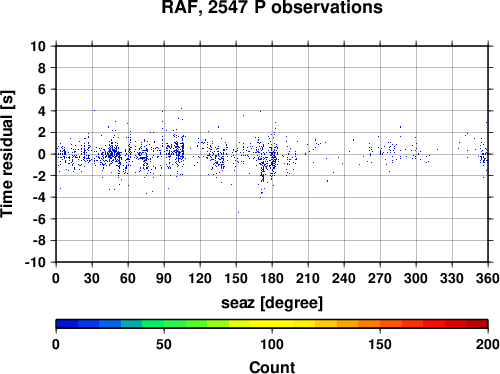

Travel time residuals


Station comments:
=================

Station is under construction and will be instrumented next autumn.
Station belongs to the same network as all other finnish stations

Data at the ISC for 20 years between 2005 and 2024.
