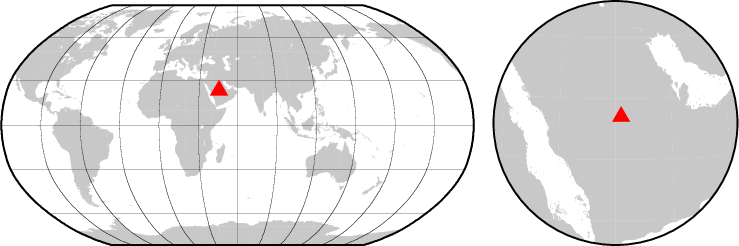

Station details:
================

Code: RAYN
Latitude:  23.52250
Longitude:   45.50319
Elevation:   631.0
Depth:
Name: Ar Rayn
Region: Saudi Arabia
Status:

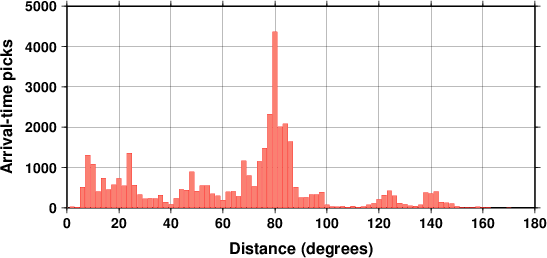

Arrival picks statistics
Travel Time Analysis

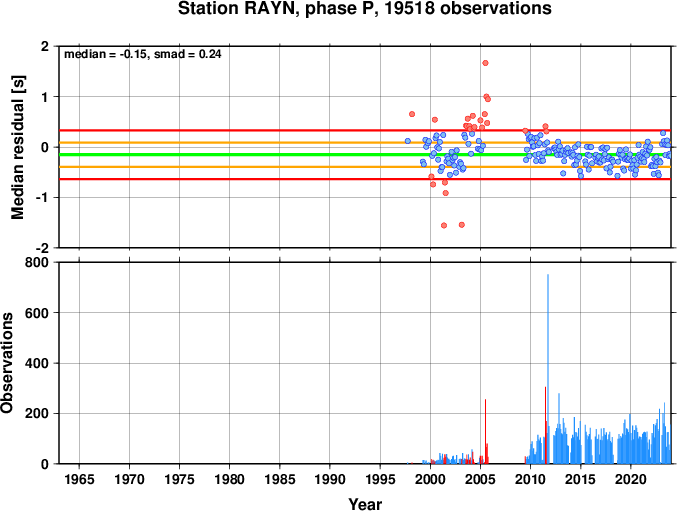

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

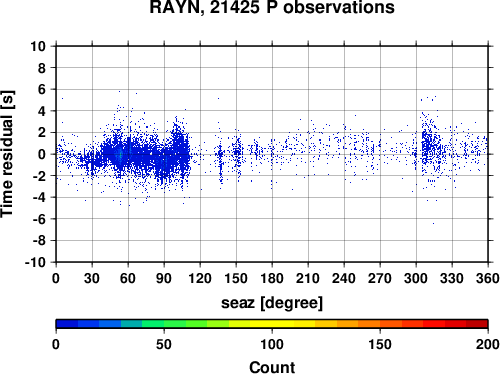

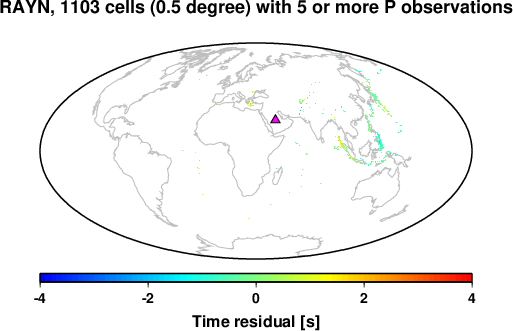

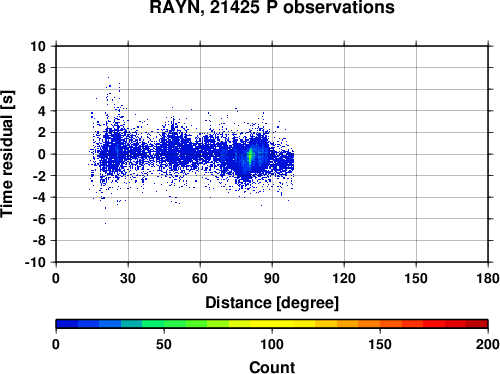

Travel time residuals
Amplitude analysis

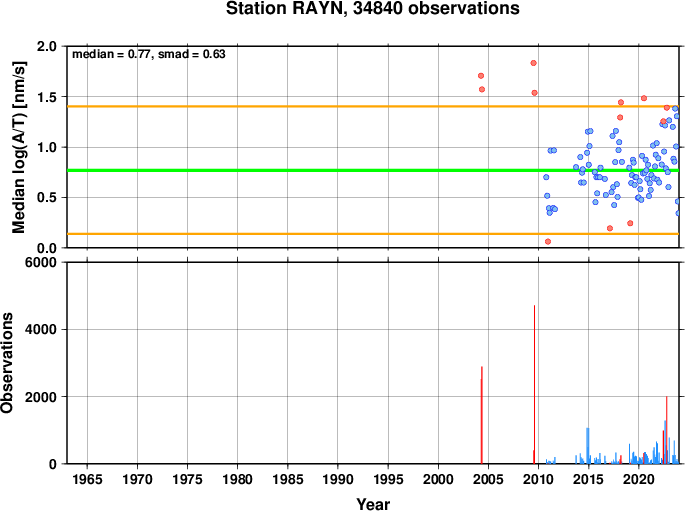

 On the top graph every dot represents the median value for that month of data.
The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line (if present) shows twice the standard deviation (2 * smad).
The bottom graph shows the number of observations for each month. Any red columns show those observations whose monthly median value is greater than twice the standard deviation (2 * smad) from the overall (running) median (shown in the top graph by red dots).

Red dots indicate a possible calibration error.


Station comments:
=================

ISC noticed region incorrect
opened 19960529

Data at the ISC for 28 years between 1997 and 2025.
