Station details:
================

Code: REF
Latitude:  60.48920
Longitude: -152.70200
Elevation:  1801.0
Depth:
Name: Redoubt East Flank
Region: Alaska,U.S.A.
Status:

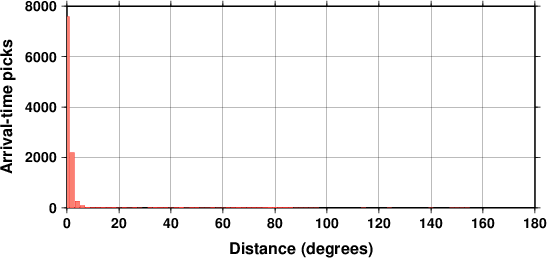

Arrival picks statistics
Travel Time Analysis
On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

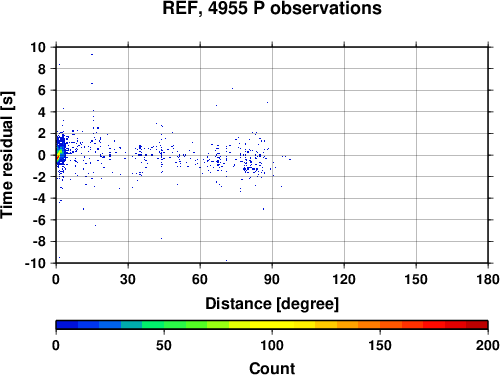

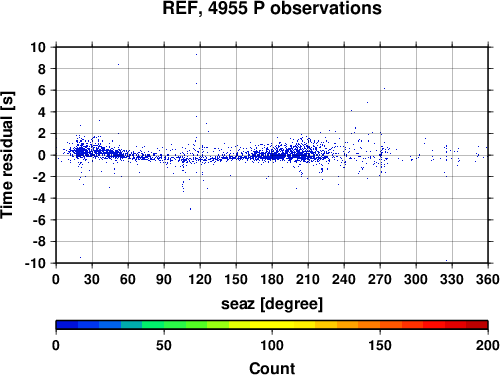

Travel time residuals


Station comments:
=================

opened 19900314
USTN 19920406-19920928

Data at the ISC for 29 years between 1990 and 2020.
