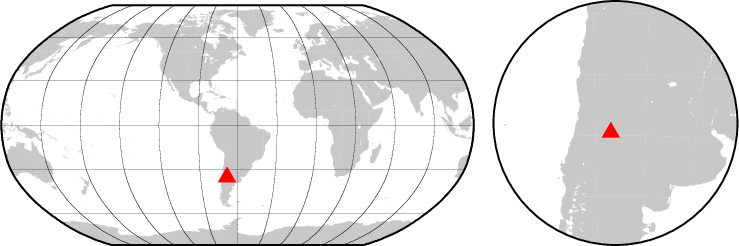

Station details:
================

Code: RFA
Latitude: -34.77080
Longitude:  -68.46600
Elevation:   850.0
Depth:
Name: San Rafael
Region: Mendoza,Argentina
Status:

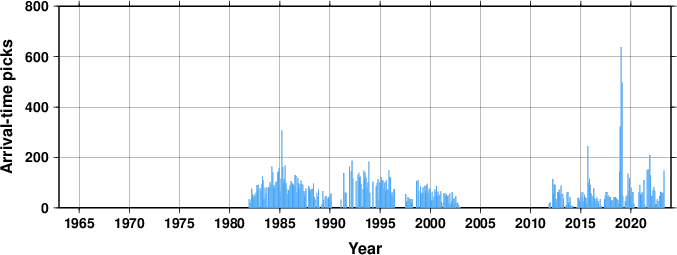

Arrival picks statistics
Travel Time Analysis

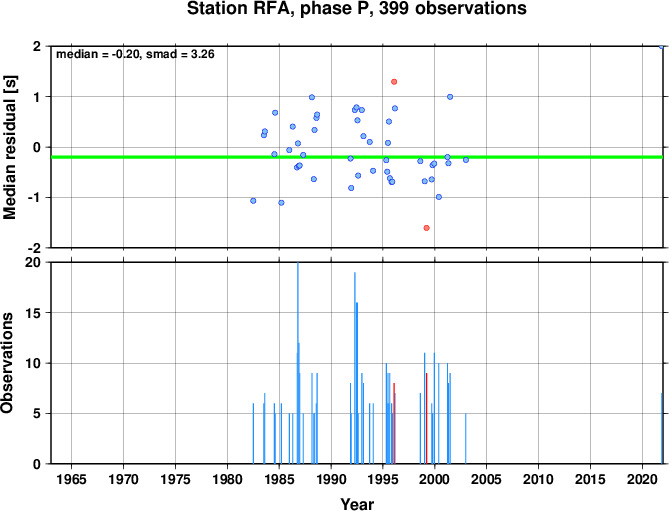

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

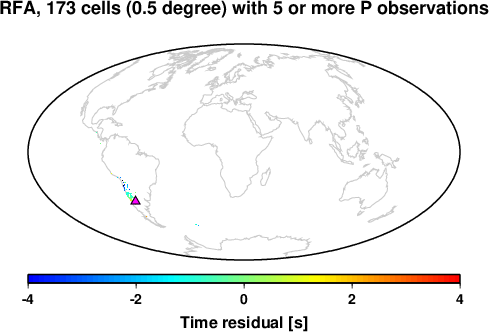

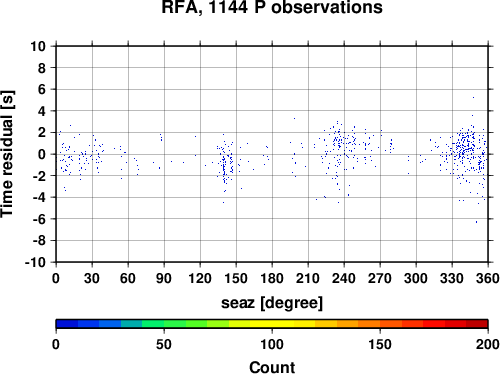

Travel time residuals


Station comments:
=================

closed 19890601
reopened 199201
Locally used equivalent codes - RF1V RF11

Data at the ISC for 35 years between 1981 and 2023.
