Station details:
================

Code: RFI
Latitude:  41.30056
Longitude:   13.98472
Elevation:   780.0
Depth:
Name: Roccamonfina
Region: Italy
Status:

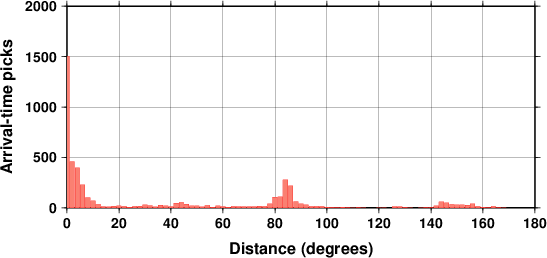

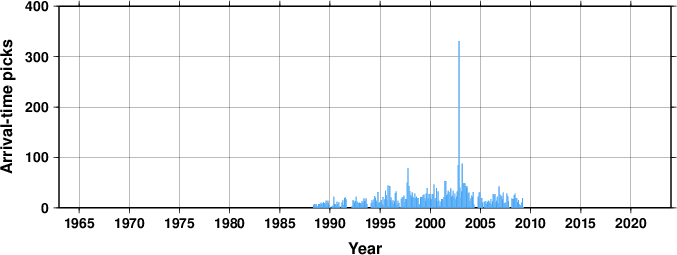

Arrival picks statistics
Travel Time Analysis

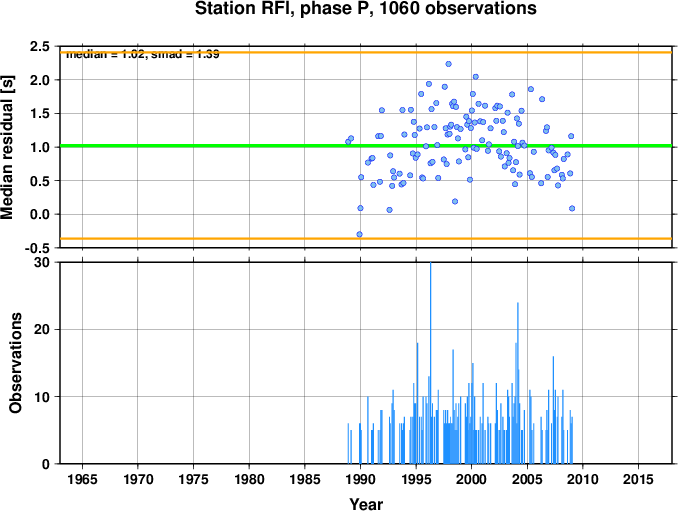

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

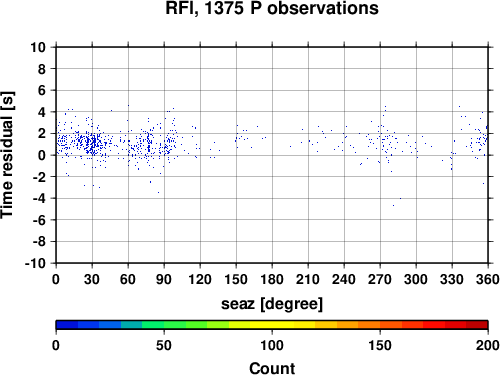

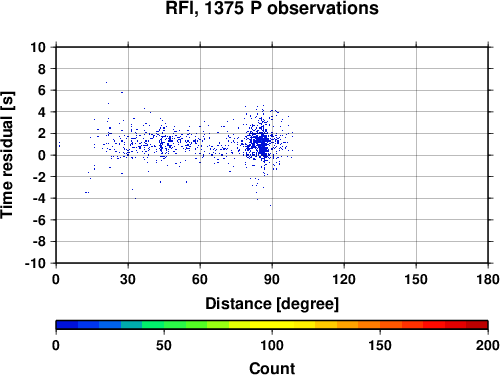

Travel time residuals


Station comments:
=================

opened 198802

Data at the ISC for 22 years between 1988 and 2009.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

RFI    Roccamonfina                                                  41.30040   13.98480                   25-08-1999 25-08-1999
       Italy
