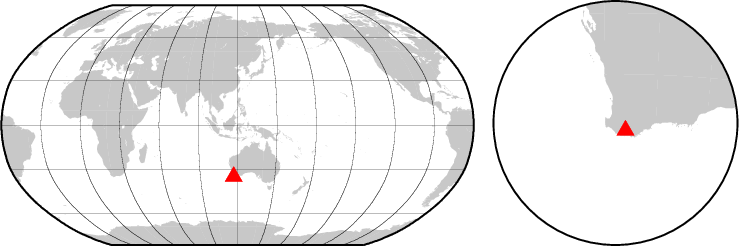

Station details:
================

Code: RKGY
Latitude: -34.60939
Longitude:  116.97728
Elevation:   220.0
Depth:
Name: Rocky Gully
Region: Western Australia,Australia
Status:

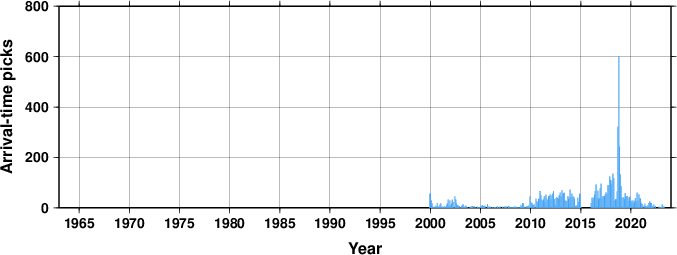

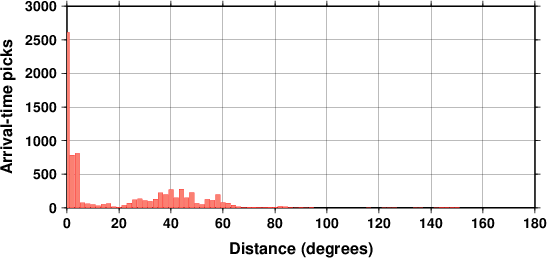

Arrival picks statistics
Travel Time Analysis

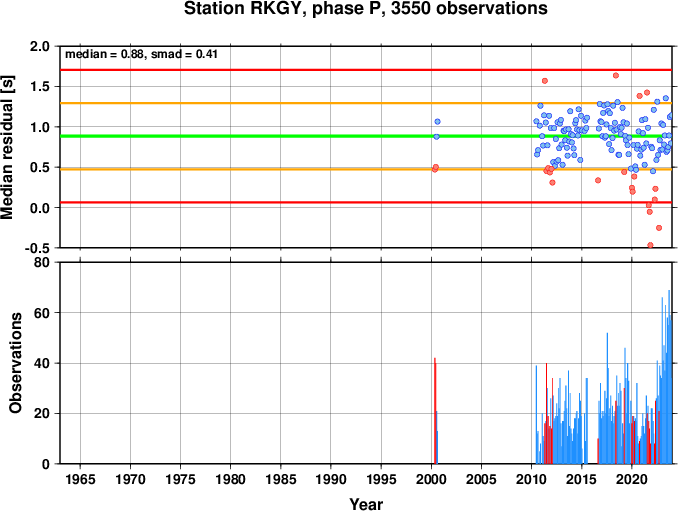

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

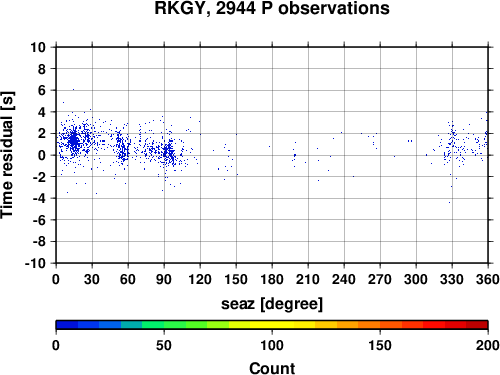

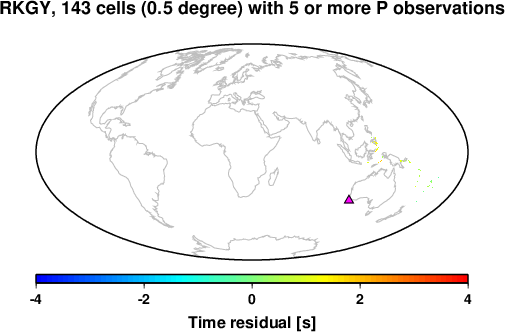

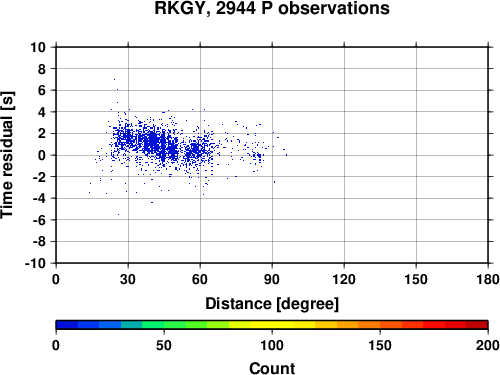

Travel time residuals


Station comments:
=================

opened 19991125

Data at the ISC for 26 years between 1999 and 2024.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

RKGY   Rocky Gully                                                  -34.60939  116.97728     220.0         03-03-2000 03-09-2010
       Western Australia,Australia
