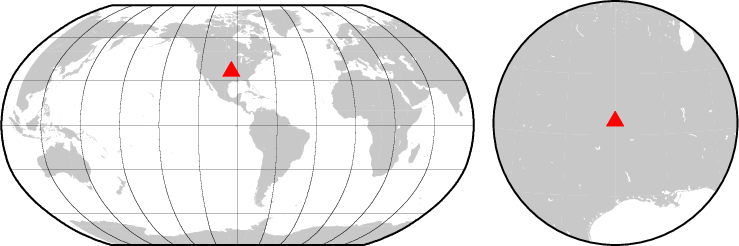

Station details:
================

Code: RLO
Latitude:  36.16520
Longitude:  -95.02290
Elevation:   341.0
Depth:
Name: Rose Lookout
Region: Oklahoma,U.S.A.
Status:

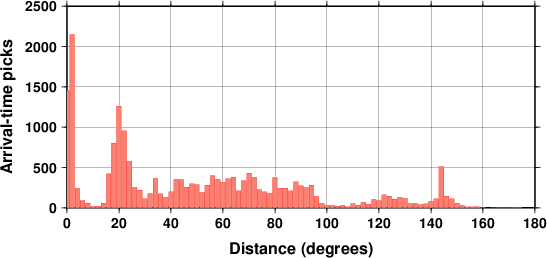

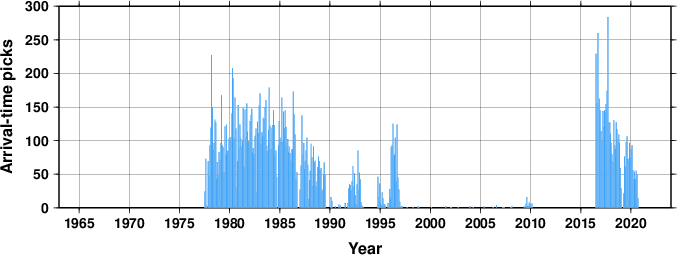

Arrival picks statistics
Travel Time Analysis

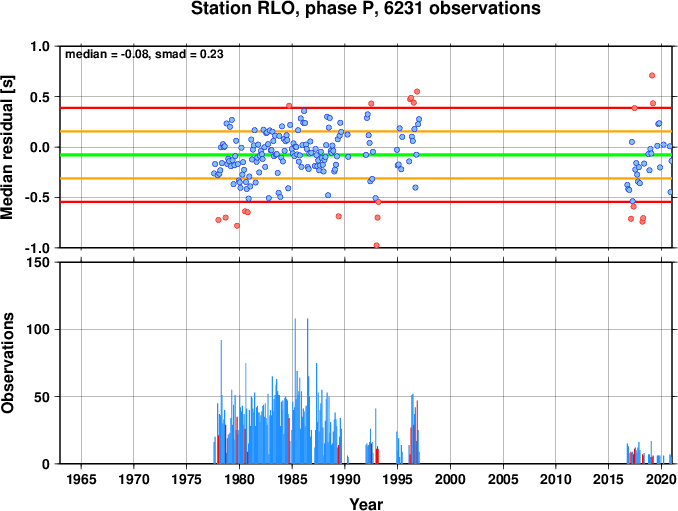

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

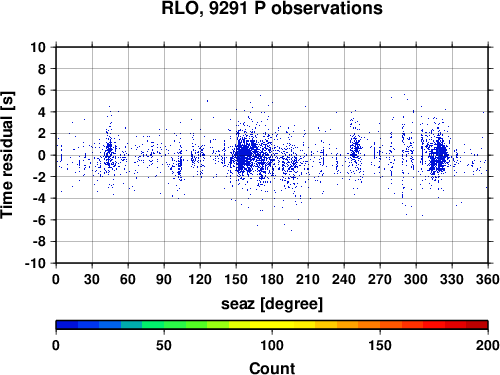

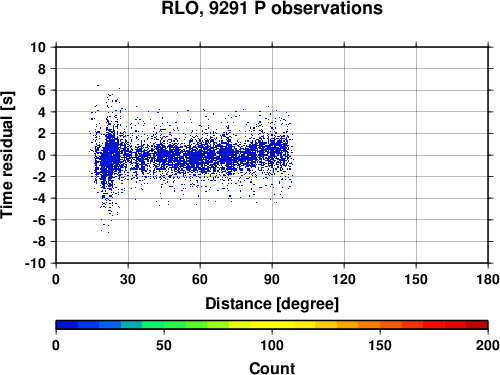

Travel time residuals


Station comments:
=================

Rose Lookout Tower
opened 197705
moved slightly 19860714
Old position 36.1670N, 95.0252W, 363m

Data at the ISC for 38 years between 1977 and 2020.
