Station details:
================

Code: RSA
Latitude:  34.88400
Longitude:   -5.82100
Elevation:   660.0
Depth:
Name: Sarsar
Region: Morocco
Status:

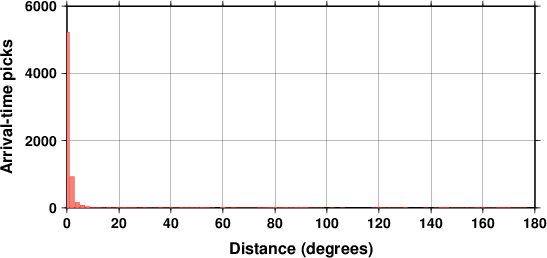

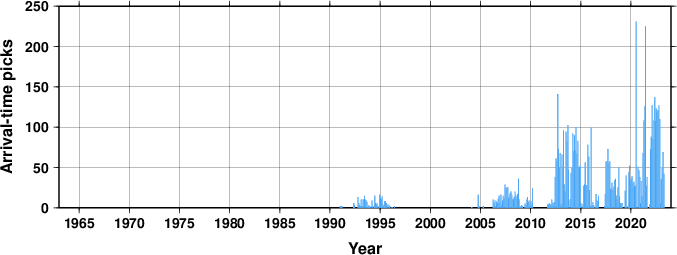

Arrival picks statistics
Travel Time Analysis

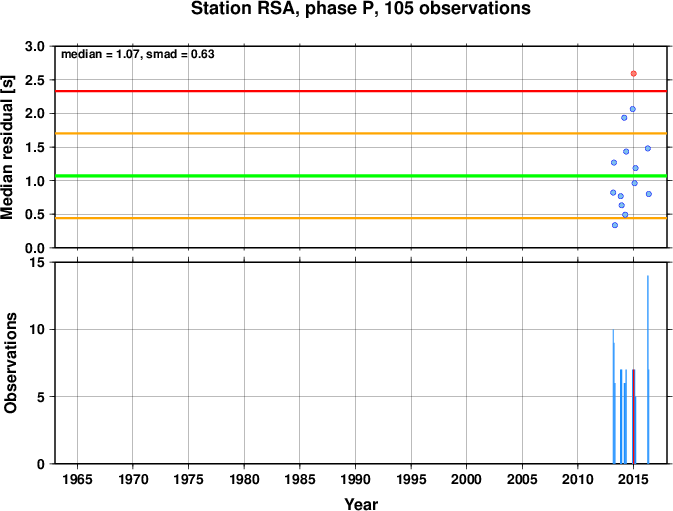

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================

Checked against station bulletin
Coords corrected 199907 from 1992 bulletin

Data at the ISC for 28 years between 1991 and 2025.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

RSA    Sarsar                                                        34.87690   -5.82806     609.0         25-08-1999 25-08-1999
       Morocco
