Station details:
================

Code: RST
Latitude:  29.50028
Longitude:   46.99722
Elevation:   218.0
Depth:
Name: Umm Al-Ruwaisat
Region: Kuwait
Status:

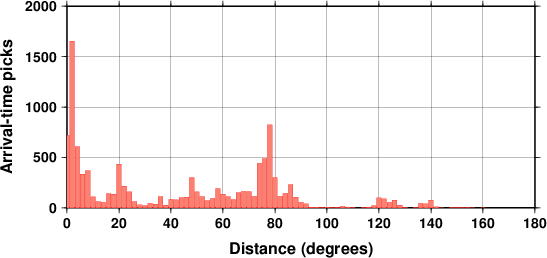

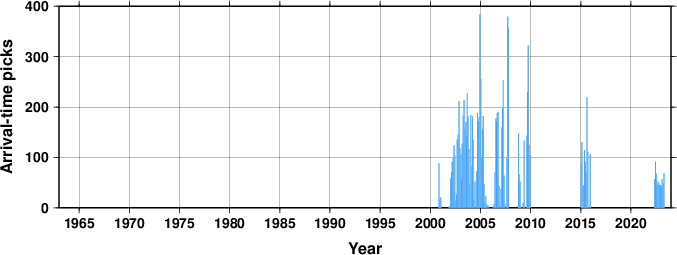

Arrival picks statistics
Travel Time Analysis

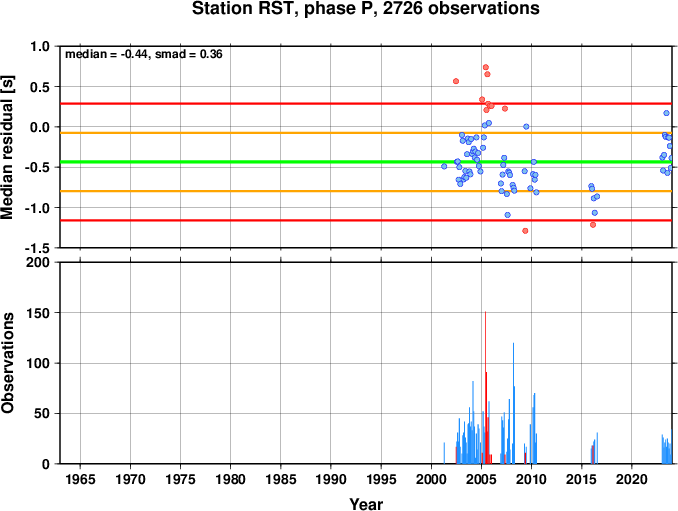

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.
Travel time residuals
Amplitude analysis

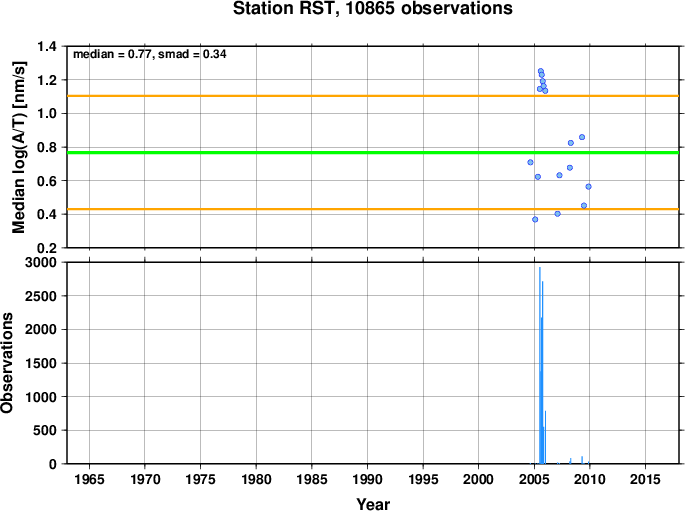

 On the top graph every dot represents the median value for that month of data.
The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line (if present) shows twice the standard deviation (2 * smad).
The bottom graph shows the number of observations for each month. Any red columns show those observations whose monthly median value is greater than twice the standard deviation (2 * smad) from the overall (running) median (shown in the top graph by red dots).

Red dots indicate a possible calibration error.


Station comments:
=================


Data at the ISC for 14 years between 2000 and 2024.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

RST    Umm Al-Ruwaisat                                               29.50970   47.03170     218.0         25-08-1999 25-08-1999
       Kuwait

RST    Umm Al-Ruwaisat                                               29.50970   47.03170     218.0         25-08-1999 03-03-2000
       Kuwait

RST    Umm Al-Ruwaisat                                               29.50028   46.99722     218.0         03-03-2000 03-03-2000
       Kuwait
