Station details:
================

Code: RTB
Latitude:  33.02950
Longitude:   40.30770
Elevation:   612.0
Depth:
Name: Rutbah
Region: Iraq
Status:

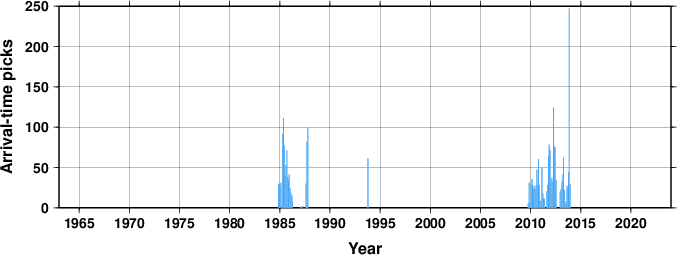

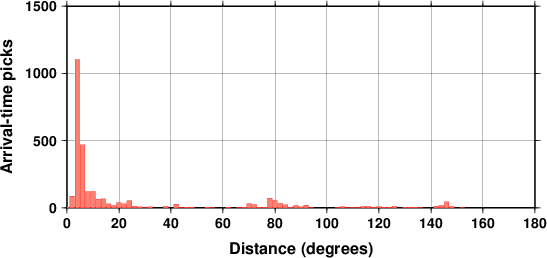

Arrival picks statistics
Travel Time Analysis

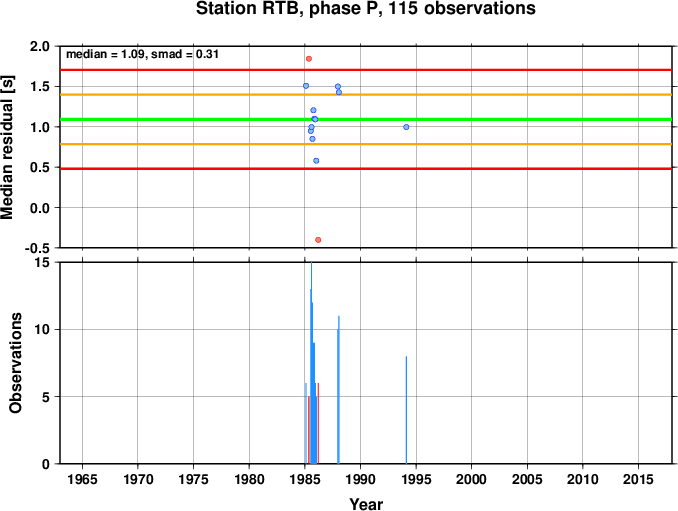

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.


Station comments:
=================


Data at the ISC for 11 years between 1984 and 2013.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

RTB    Rutbah                                                        33.02950   40.30770     624.0         25-08-1999 28-12-2009
       Iraq
