Station details:
================

Code: RW5
Latitude:  38.08000
Longitude: -107.83200
Elevation:  2991.0
Depth:
Name: Ridgway
Region: Colorado,U.S.A.
Status:

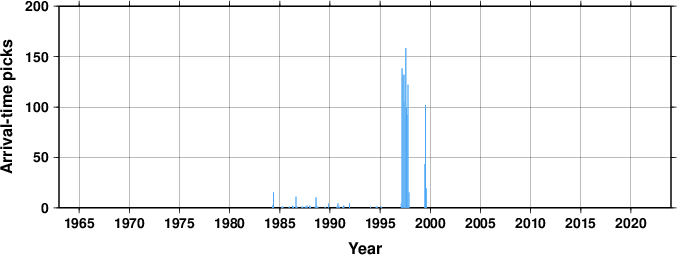

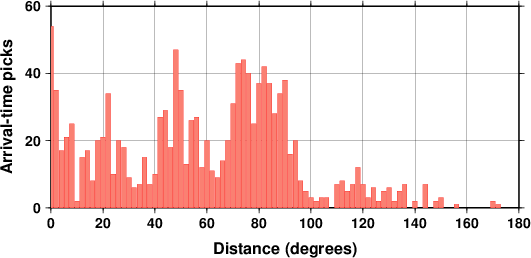

Arrival picks statistics
Travel Time Analysis
On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

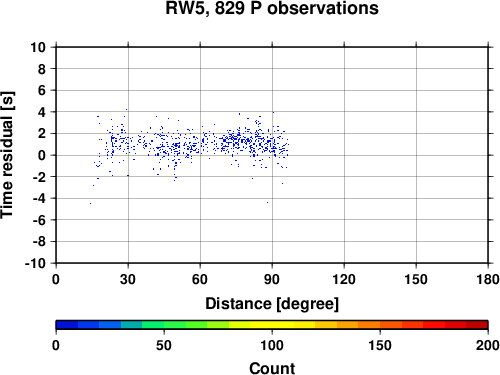

Travel time residuals


Station comments:
=================

opened 1983
USTN before 198401-before 199208
reopened 19970226

Data at the ISC for 12 years between 1984 and 1999.
