Station details:
================

Code: TATS
Latitude:  19.54160
Longitude:   43.47730
Elevation:  1123.0
Depth:
Name: Tathlith
Region: Saudi Arabia
Status:

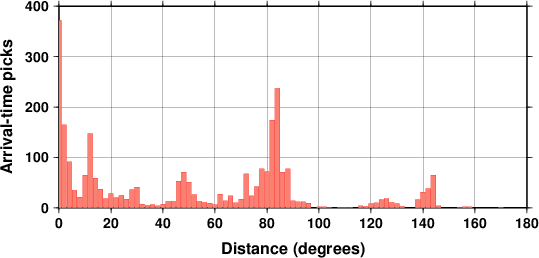

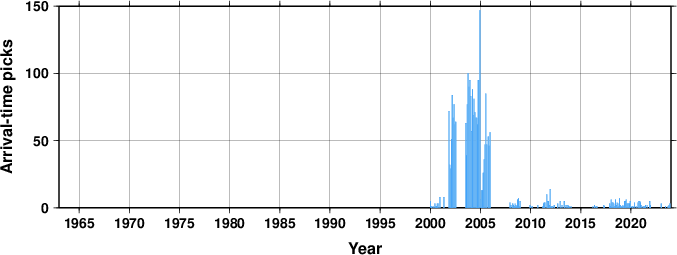

Arrival picks statistics
Travel Time Analysis

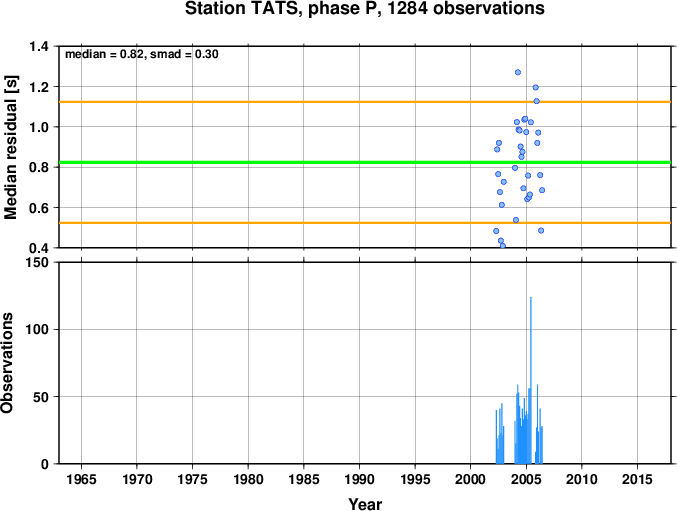

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

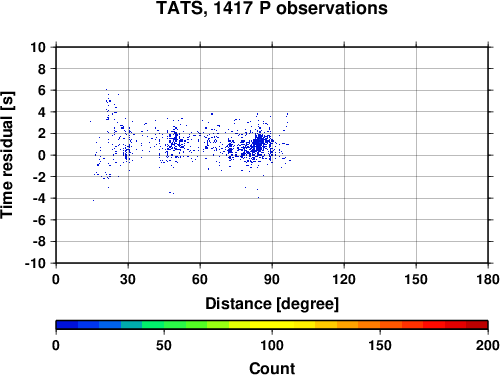

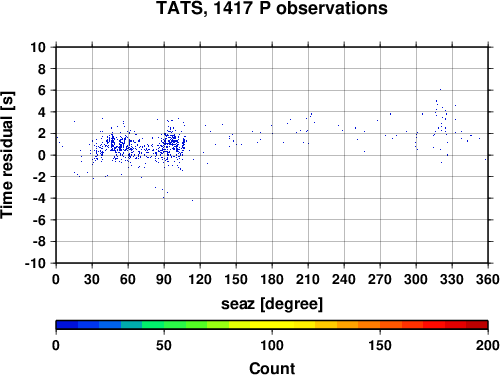

Travel time residuals


Station comments:
=================

opened 19980518
Update via CSEM/EMSC
BB station

Data at the ISC for 21 years between 2000 and 2023.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

TATS   Tathlith                                                      19.54119   43.47750    1100.0         10-09-2001 19-05-2008
       Saudi Arabia
