Station details:
================

Code: TIGA
Latitude:  31.43890
Longitude:  -83.58980
Elevation:   109.0
Depth:
Name: Tifton
Region: Georgia,U.S.A.
Status:

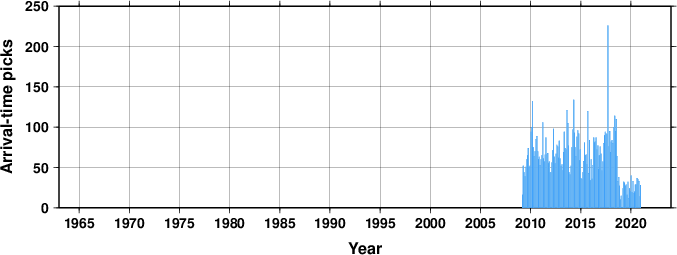

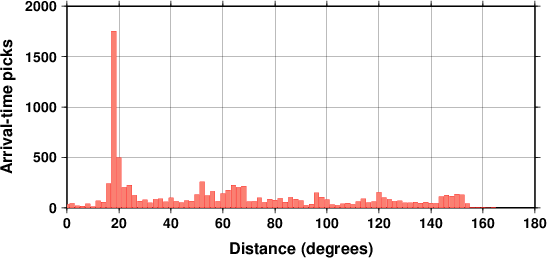

Arrival picks statistics

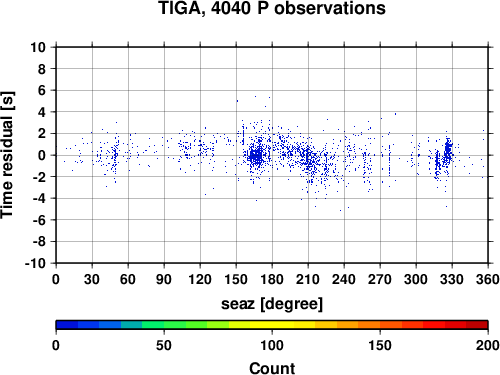

Travel Time Analysis

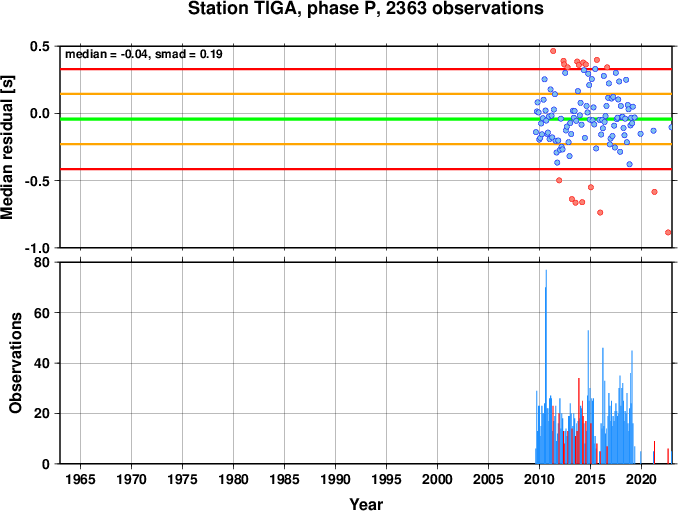

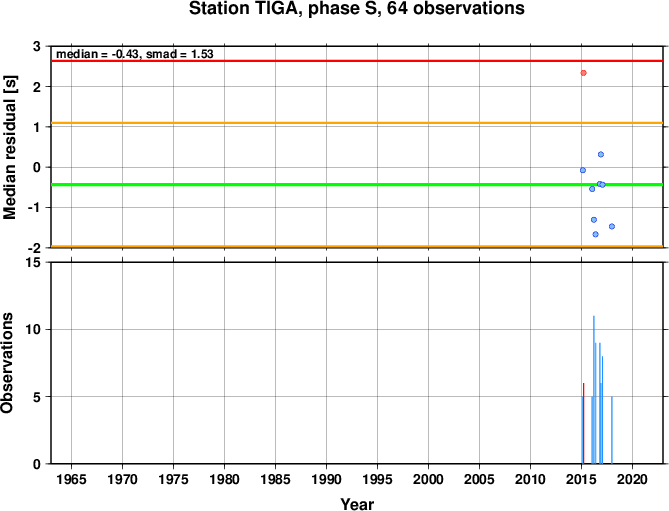

On the top graph every dot represents the median residual for one month of data. The green line is the overall median; the orange line shows the standard deviation (smad) based on the median absolute deviation (mad), whilst the red line shows twice the standard deviation (2 * smad).
The bottom graph shows the number of residuals for each month. The red columns show the number of residuals whose median (for that month) is outside two standard deviations from the overall median (2 * smad).
Red dots indicate a possible clock error.

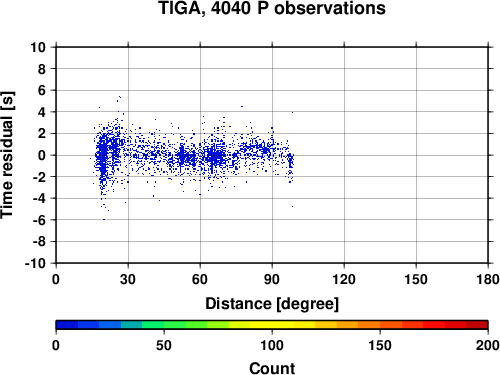

Travel time residuals


Station comments:
=================

US Array Reference Station
updated co-ordinates 2009/03/16

Data at the ISC for 12 years between 2009 and 2020.

Known station history:
======================

First and Last use refers to the time period in which the coordinates were used by the ISC.

Code   Station name/Region                                           Latitude  Longitude Elevation   Depth  First use   Last use
================================================================================================================================

TIGA   Tifton                                                        31.43890  -83.58970     107.0                    22-10-2009
       Georgia
